Removal Procedure

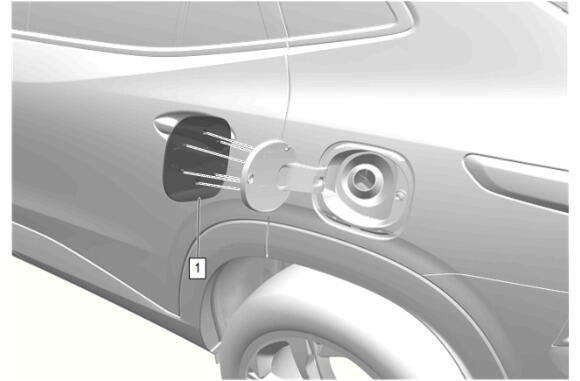

  1. GM5925272Courtesy of GENERAL MOTORS COMPANY

    Position the fuel tank filler door (1) to the fill open position.

  2. Using the appropriate tool, release the filler door retainers and remove the fuel tank filler door (1).
