Removal Procedure

WARNING:

When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (2) - Remove - Front Side Door Trim Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Armrest Bracket Bolt (1) - Remove [2x]
Reposition water deflector, as necessary.

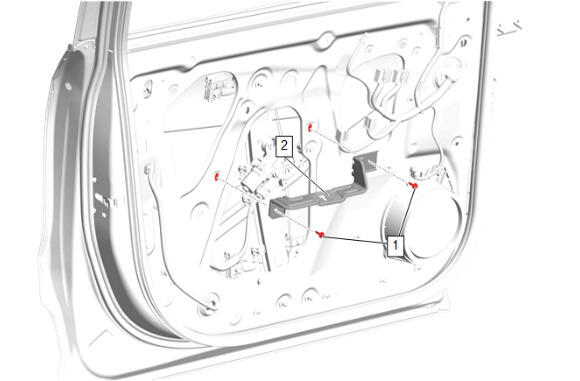

Front Side Door Armrest Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Route front side door inside handle cable through hole in deflector (1).

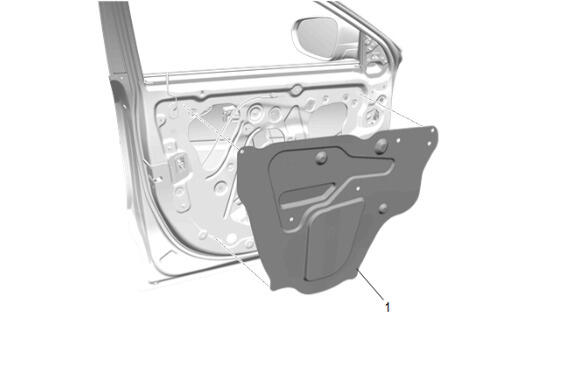

Front Side Door Water Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Radio Front Side Door Speaker Bolt (1) - Remove
Radio Front Side Door Speaker (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Typical wiring harness shown, individual harness may be different due to option content.

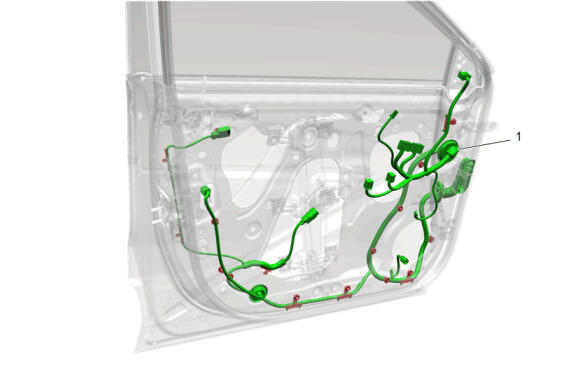

Front Side Door Wiring Harness (1) - Remove
