Removal Procedure

  1. GM5671855Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

  2. Using the appropriate tool, remove the weatherstrip retainers from around the front side door.

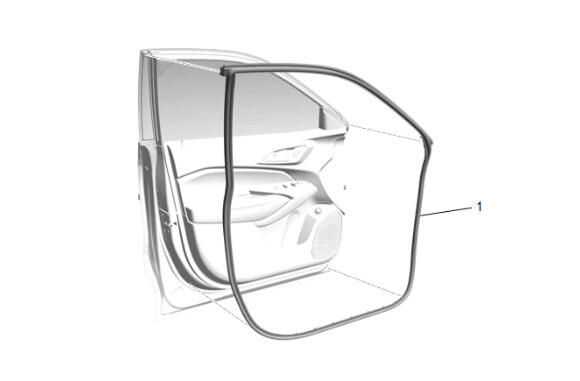

  3. GM5925280Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Weatherstrip - Door Side (1) - Remove
