Fastener Specifications
Brake Pedal Position Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Brake Pedal Position Sensor Bolt | - | - | 3 N.m (27 lb in) | Brake Pedal Position Sensor Replacement |
Front Headlamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Front Headlamp Replacement |

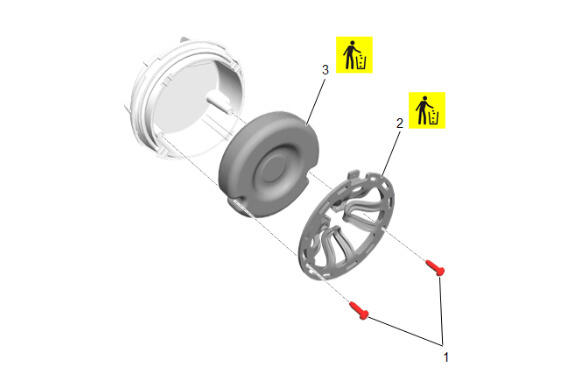

Headlamp Desiccant
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Desiccant Retainer Bolt [2x] | - | - | 0.4 N.m (4 lb in) | Headlamp Desiccant Retainer Replacement |
| 2 | Headlamp Desiccant Retainer | Yes | - | - | Headlamp Desiccant Retainer Replacement |
| 3 | Headlamp Desiccant | Yes | - | - | Headlamp Desiccant Retainer Replacement |
High Mount Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Mount Stop Lamp Bracket Bolt [7x] | - | - | 2.5 N.m (22 lb in) | High Mount Stop Lamp Replacement |
| 2 | Rear End Spoiler Bolt [12x] | - | - | 2.5 N.m (22 lb in) | High Mount Stop Lamp Replacement |
Outside Rearview Mirror Turn Signal Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Turn Signal Lamp Bolt | - | - | 1.45 N.m (13 lb in) | Outside Rearview Mirror Turn Signal Lamp Replacement |
Rear Body Structure Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Body Structure Stop Lamp Replacement (- K1T)Rear Body Structure Stop Lamp Replacement (K1T) |
Rear License Plate Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear License Plate Lamp Nut [2x] | - | - | 4.7 N.m (42 lb in) | Rear License Plate Lamp Module Replacement |
