Removal Procedure

  1. Rear Seat - Remove - Rear Seat Removal and Installation (Right Side)Rear Seat Removal and Installation (Left Side)Rear Seat Removal and Installation (Captain)
  2. GM6385791Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Handle Retainer (1) - Remove

  3. Rear Seat Recliner Handle (2) Remove
  4. GM6385793Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Outer Finish Cover Bolt (1) Remove [2x]

  5. Rear Seat Frame Outer Finish Cover (2) - Remove
  6. GM6385964Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Outer Hinge Finish Cover Bolt (1) Remove [2x]

  7. Rear Seat Outer Hinge Finish Cover (2) - Remove

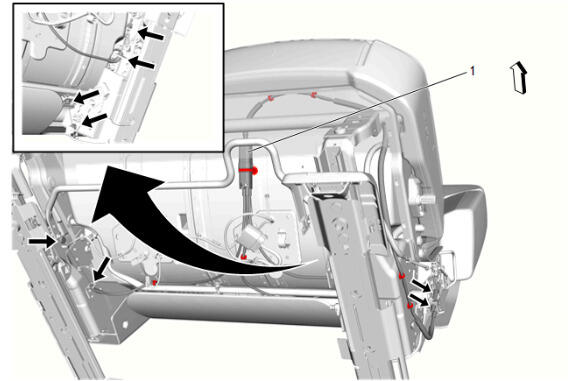

  8. GM6660115Courtesy of GENERAL MOTORS COMPANY

    Using a suitable tool, release the seat cable retaining features.

  9. Release the cable end from the rear seat frame
  10. Rear Seat Latch Cable (1) Remove
