Removal Procedure

  1. Rear Seat - Remove - Rear Seat Removal and Installation (Right Side)
  2. GM6385791Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Handle Retainer (1) - Remove

  3. Rear Seat Recliner Handle (2) - Remove
  4. GM6385793Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Outer Finish Cover Bolt (1) - Remove [2x]

  5. Rear Seat Frame Outer Finish Cover (2) - Remove
  6. GM6385963Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Bolt Cap (1) - Remove

  7. Rear Seat Outer Hinge Finish Cover Bolt (2) - Remove
  8. Rear Seat Outer Hinge Finish Cover (3) - Remove
  9. GM6385978Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Inner Finish Cover Bolt (1) - Remove [2x]

  10. Rear Seat Frame Inner Finish Cover (2) - Remove
  11. GM6386814Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Inner Hinge Finish Cover Bolt (1) - Remove

  12. Rear Seat Inner Hinge Finish Cover (2) - Remove
  13. GM6420701Courtesy of GENERAL MOTORS COMPANY

    Disengage the J-channel retainers from the seat cushion frame.

  14. Rear Seat Cushion Cover and Pad (1) - Remove

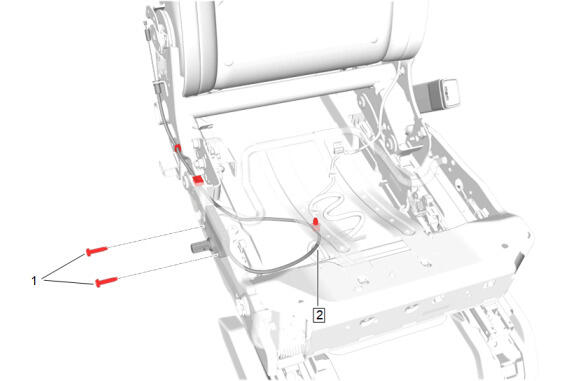

  15. GM5727416Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Latch Cable Bolt (1) - Remove [2x]

  16. Using a suitable tool, release the seat cable retaining features.
  17. Release the cable end from the rear seat frame
  18. Rear Seat Latch Cable (2) - Remove
