Removal Procedure

  1. Rear Seat - Remove - Rear Seat Removal and Installation (Left Side)
  2. GM6385791Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Handle Retainer (1) - Remove

  3. Rear Seat Recliner Handle (2) - Remove
  4. GM6663950Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Outer Finish Cover Bolt (1) - Remove [2x]

  5. Rear Seat Frame Outer Finish Cover (2) - Remove
  6. GM6385964Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Outer Hinge Finish Cover Bolt (1) - Remove [2x]

  7. Rear Seat Outer Hinge Finish Cover (2) - Remove

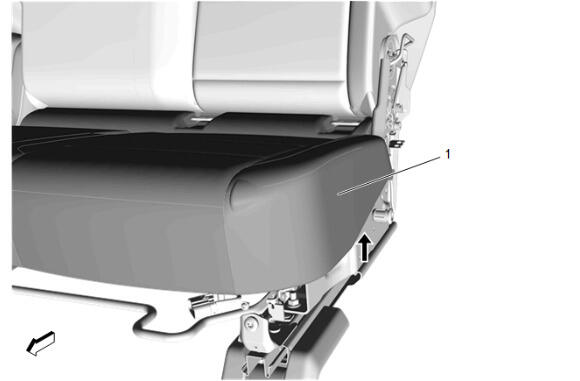

  8. GM6663952Courtesy of GENERAL MOTORS COMPANY

    Release the rear seat cushion cover and pad (1) J-channel retainers as necessary to gain access to rear seat latch cable bolts.

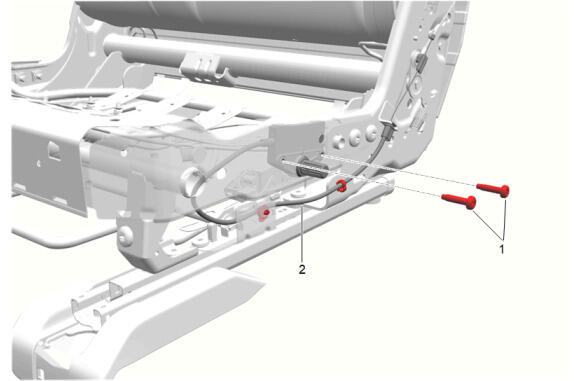

  9. GM5727410Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the location and routing of the seat cable to ensure proper installation.

    Rear Seat Latch Cable Bolt (1) - Remove [2x]

  10. Using a suitable tool, release the seat cable retaining features.
  11. Release the cable end from the rear seat frame.
  12. Rear Seat Latch Cable (2) - Remove
