Removal Procedure

Rear Seat - Remove - Rear Seat Removal and Installation (Right Side)
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Recliner Handle Retainer (1) - Remove
Rear Seat Recliner Handle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Frame Outer Finish Cover Bolt (1) - Remove [2x]
Rear Seat Frame Outer Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Bolt Cap (1) - Remove
Rear Seat Outer Hinge Finish Cover Bolt (2) - Remove
Rear Seat Outer Hinge Finish Cover (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Frame Inner Finish Cover Bolt (1) - Remove [2x]
Rear Seat Frame Inner Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Inner Hinge Finish Cover Bolt (1) - Remove
Rear Seat Inner Hinge Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disengage the J-channel retainers from the seat cushion frame.
Rear Seat Cushion Cover and Pad Asm (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Bolt Cap (1) - Remove
Rear Seat Trim Panel Bolt (2) - Remove
Rear Seat Trim Panel Bolt (3) - Remove
Rear Seat Track Finish Cover (4) - Remove
Courtesy of GENERAL MOTORS COMPANY

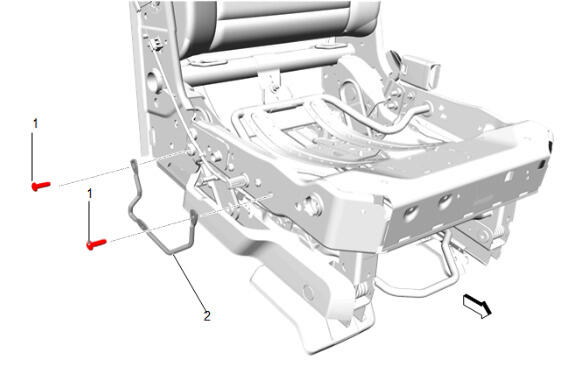

Rear Seat Hinge Finish Cover Retainer Bolt (1) - Remove [2x]
Rear Seat Hinge Finish Cover Retainer - Left Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

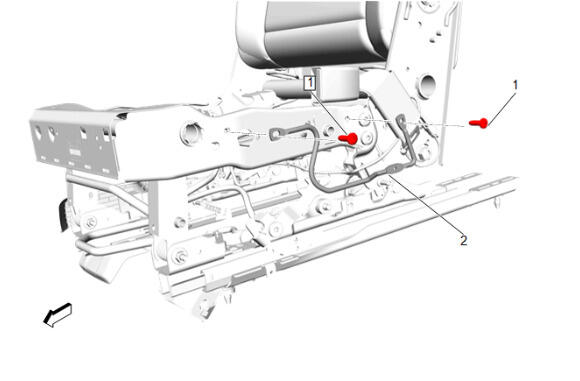

Rear Seat Hinge Finish Cover Retainer Bolt (1) - Remove [2x]
Rear Seat Hinge Finish Cover Retainer - Right Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

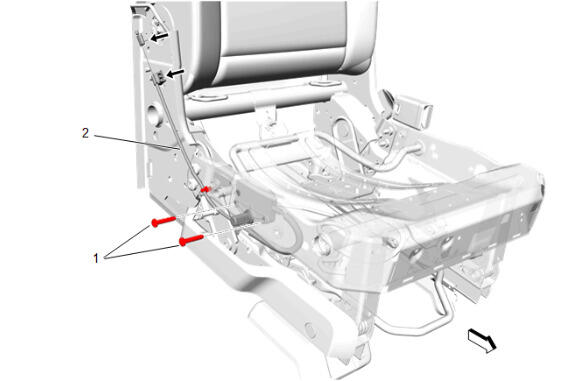

Rear Seat Latch Cable Bolt (1) - Remove [2x]
Using a suitable tool, release the seat cable retaining features.
Courtesy of GENERAL MOTORS COMPANY

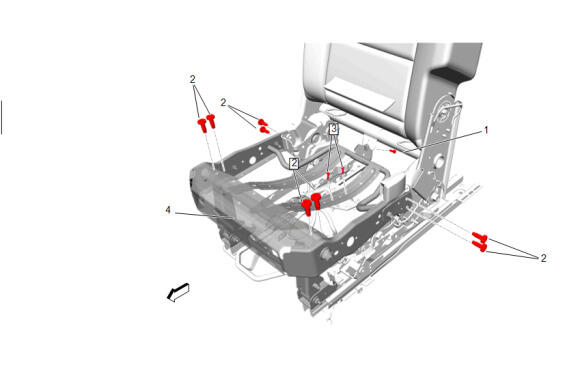

Rear Seat Cushion Frame Bolt (1) - Remove
Rear Seat Cushion Frame Bolt - Rear (2) - Remove [8x]
Rear Seat Cushion Frame Bolt - Front (3) - Remove [2x]
Rear Seat Cushion Frame (4) - Remove
