Removal Procedure

Rear Seat - Remove - Rear Seat Removal and Installation (Left Side)Rear Seat Removal and Installation (Captain)
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Recliner Handle Retainer (1) - Remove
Rear Seat Recliner Handle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Frame Inner Finish Cover Bolt (1) - Remove [2x]
Rear Seat Frame Inner Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Outer Hinge Finish Cover Bolt (1) - Remove [2x]
Rear Seat Outer Hinge Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Frame Outer Finish Cover Bolt (1) - Remove [2x]
Rear Seat Frame Outer Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Inner Hinge Finish Cover Bolt (1) - Remove
Rear Seat Inner Hinge Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Reposition the seat as necessary.
Release the 2 seat back cushion cover elastic straps and fold flap up to gain access to rear seat cushion cover retainers.
Release seat cushion cover J-channel retainers as necessary.
Rear Seat Center Belt Nut (1) - Remove
Disconnect the electrical connector and release the wiring harness retainers as necessary.
Rear Seat Belt Buckle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disengage the J-channel retainers from the seat cushion frame.
Remove rear seat cushion cover and pad assembly (1).
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Latch Cable Bolt (1) - Remove [2x]
Using a suitable tool, release the seat cable retaining features.
Release the cable end from the rear seat frame.
Rear Seat Latch Cable (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

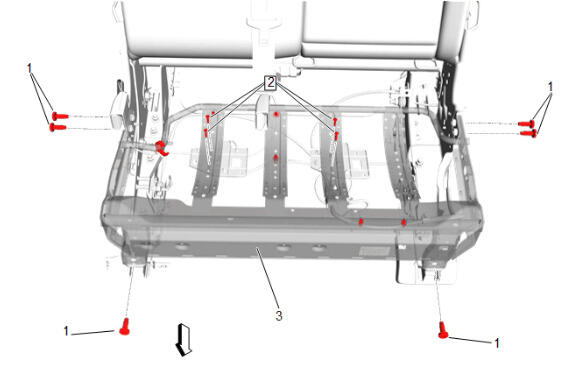

Rear Seat Cushion Frame Bolt (1) - Remove [6x]
Rear Seat Bracket Bolt (2) - Remove [4x]
Release the clips with a suitable tool.
Rear Seat Cushion Frame (3) - Remove
