Removal Procedure

  1. Rear Seat - Remove - Rear Seat Removal and Installation (Captain)
  2. GM6563536Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Handle Retainer (1) - Remove

  3. Rear Seat Recliner Handle (2) Remove
  4. GM6385793Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Right side shown, Left side similar.

    Rear Seat Frame Outer Finish Cover Bolt (1) Remove [2x]

  5. Rear Seat Frame Outer Finish Cover (2) - Remove
  6. GM6563535Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Bolt Cap (1) Remove

  7. Rear Seat Outer Hinge Finish Cover Bolt (2) Remove
  8. {If equipped} Disconnect the electrical connector.
  9. Rear Seat Outer Hinge Finish Cover (3) - Remove
  10. GM6385978Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Right side shown, Left side similar.

    Rear Seat Frame Inner Finish Cover Bolt (1) Remove [2x]

  11. Rear Seat Frame Inner Finish Cover (2) - Remove
  12. GM6387213Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Right side shown, Left side similar.

    Rear Seat Bolt Cap (1) - Remove

  13. Rear Seat Inner Hinge Finish Cover Bolt (2) - Remove
  14. Rear Seat Inner Hinge Finish Cover (2) - Remove
  15. GM6420701Courtesy of GENERAL MOTORS COMPANY

    Disengage the J-channel retainers from the seat cushion frame.

  16. {If equipped} Disconnect the electrical connector.
  17. Remove the Rear Seat Cushion Cover and Pad (1) as an assembly.
  18. GM6563542Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Latch Cable Bolt (1) - Remove [2x]

  19. Using a suitable tool, release the seat cable retaining features.
  20. Rear Seat Latch Cable (4) - Reposition

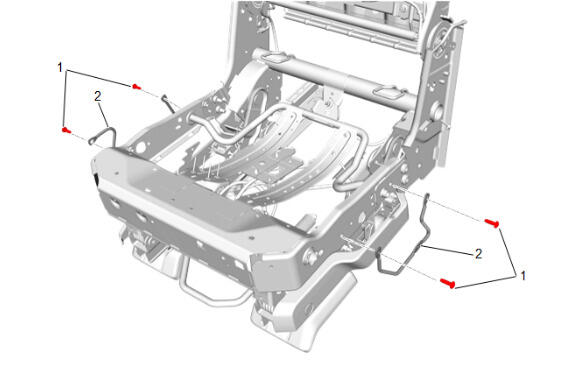

  21. GM6422463Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Hinge Finish Cover Retainer Bolt (1) - Remove [4x]

  22. Rear Seat Hinge Finish Cover Retainer (2) - Remove [2x]
  23. GM6387233Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Inboard side of the right side seat shown.

    Rear Seat Bolt Cap (1) - Remove [2x]

  24. Rear Seat Trim Panel Bolt (2) - Remove [2x]
  25. Rear Seat Trim Panel Bolt (4) - Remove
  26. Rear Seat Track Finish Cover (3) - Remove
  27. GM6422488Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Bolt Cap (1) - Remove

  28. Rear Seat Trim Panel Bolt (2) - Remove [2x]
  29. Rear Seat Track Finish Cover- Outboard (3) - Remove

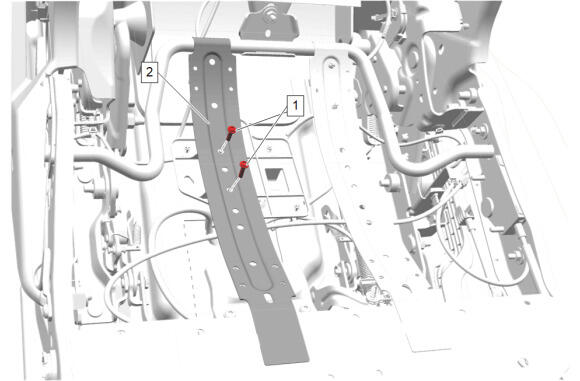

  30. GM6728799Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Bolt (1) - Remove [2x]

  31. GM6440425Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion Frame Bolt (1) - Remove

  32. Rear Seat Cushion Frame Bolt - Rear (2) - Remove [4x]
  33. Rear Seat Cushion Frame Bolt -Front (3) - Remove [4x]
  34. Rear Seat Cushion Frame (4) - Remove
  35. Transfer components as necessary.
