Removal Procedure
- Rear Seat - Remove - Rear Seat Removal and Installation (Left Side)
Rear Seat Recliner Handle Retainer (1) - Remove
- Rear Seat Recliner Handle (2) - Remove
Rear Seat Frame Inner Finish Cover Bolt (1) - Remove [2x]
- Rear Seat Frame Inner Finish Cover (2) - Remove
Rear Seat Outer Hinge Finish Cover Bolt (1) - Remove [2x]
- Rear Seat Outer Hinge Finish Cover (2) - Remove
Rear Seat Frame Outer Finish Cover Bolt (1) - Remove [2x]
- Rear Seat Frame Outer Finish Cover (2) - Remove
Rear Seat Inner Hinge Finish Cover Bolt (1) - Remove
- Rear Seat Inner Hinge Finish Cover (2) - Remove
Reposition the seat as necessary.
- Release the 2 seat back cushion cover elastic straps and fold flap up to gain access to rear seat cushion cover retainers.
- Release seat cushion cover J-channel retainers as necessary.
- Rear Seat Center Belt Nut (1) - Remove
- Disconnect the electrical connector and release the wiring harness retainers as necessary.
- Rear Seat Belt Buckle (2) - Remove
Disengage the J-channel retainers from the seat cushion frame.
- Remove rear seat cushion cover and pad assembly (1).

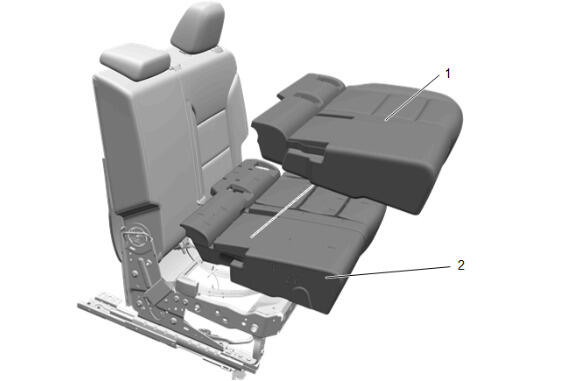

Remove the Rear Seat Cushion Cover (1) from the Rear Seat Cushion Pad (2).
