Removal Procedure

  1. Rear Seat - Remove - Rear Seat Removal and Installation (Right Side)

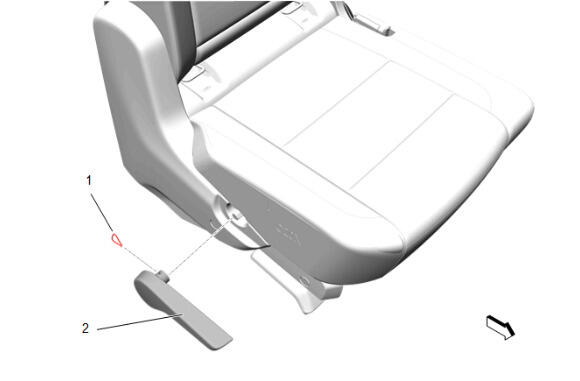

  2. GM6656014Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Recliner Handle Retainer (1) - Remove

  3. Rear Seat Recliner Handle (2) - Remove
  4. GM6385793Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Outer Finish Cover Bolt (1) - Remove [2x]

  5. Rear Seat Frame Outer Finish Cover (2) - Remove

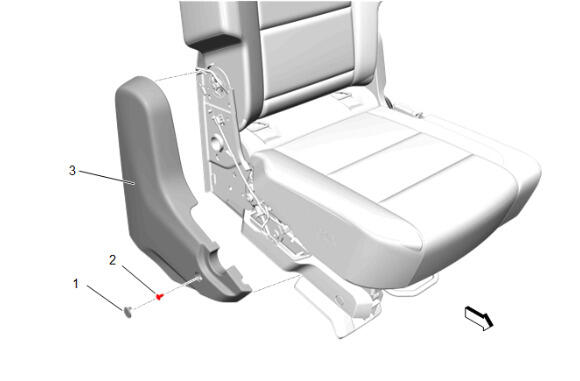

  6. GM6656013Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Bolt Cap (1) - Remove

  7. Rear Seat Outer Hinge Finish Cover Bolt (2) - Remove
  8. Rear Seat Outer Hinge Finish Cover (3) - Remove
  9. GM6385978Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Inner Finish Cover Bolt (1) - Remove [2x]

  10. Rear Seat Frame Inner Finish Cover (2) - Remove

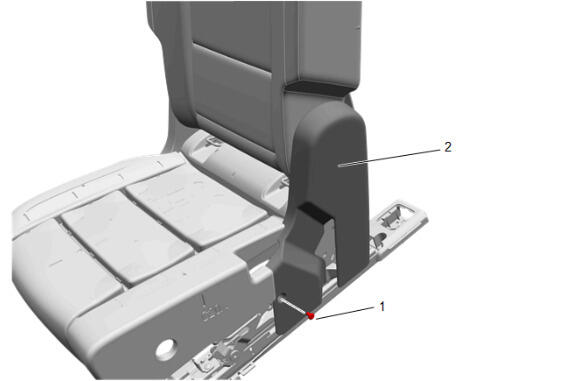

  11. GM6386814Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Inner Hinge Finish Cover Bolt (1) - Remove

  12. Rear Seat Inner Hinge Finish Cover (2) - Remove

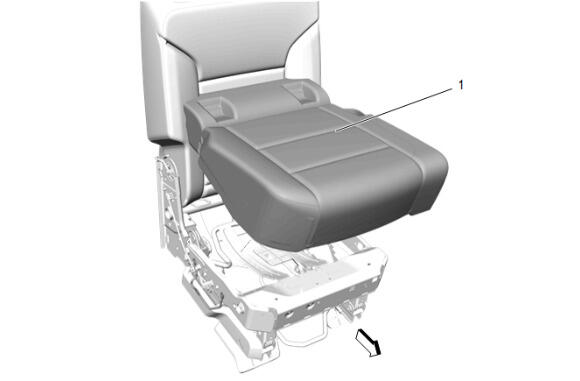

  13. GM6656022Courtesy of GENERAL MOTORS COMPANY

    Disengage the J-channel retainers from the seat cushion frame.

  14. Rear Seat Cushion Cover and Pad Asm (1) - Remove

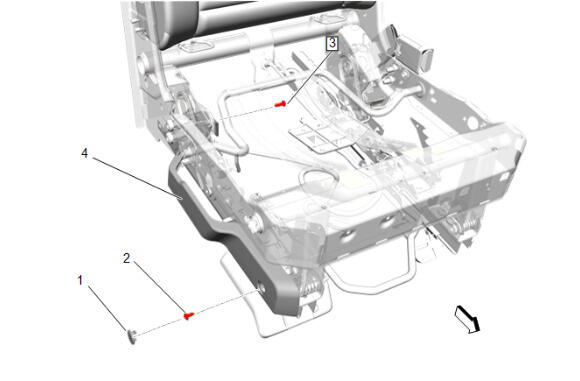

  15. GM6656027Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Bolt Cap (1) - Remove

  16. Rear Seat Trim Panel Bolt (2) - Remove
  17. Rear Seat Trim Panel Bolt (3) - Remove
  18. Rear Seat Track Finish Cover (4) - Remove
  19. GM6418535Courtesy of GENERAL MOTORS COMPANY

    Depress the Rear Seat Head Restraint Button Guide while lifting upward on the rear seat head restraint (2).

  20. Rear Seat Head Restraint (2) - Remove
  21. GM6419321Courtesy of GENERAL MOTORS COMPANY

    Using a suitable flat-bladed tool, slide the tool along the outside of the rear seat head restraint guide (1) until it finds the slot. Push the plastic tab of the rear seat head restraint guide inward and pull upward to remove from the seat back frame.

  22. Rear Seat Head Restraint Guide (1) - Remove [2x]
  23. GM6657902Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Latch Release Handle Bezel Fastener (1) - Remove

  24. Rear Seat Back Latch Release Handle Bezel (2) - Remove
  25. GM6419329Courtesy of GENERAL MOTORS COMPANY

    Use a flat bladed plastic trim tool to release the retaining tabs.

  26. Rear Seat Anchor Plate Bezel (1) - Remove

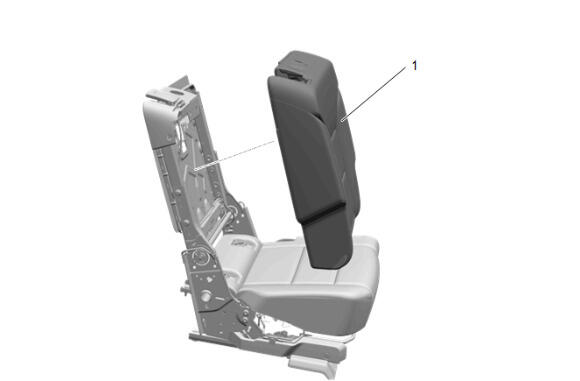

  27. GM6419330Courtesy of GENERAL MOTORS COMPANY

    Disengage the J-channel retainers from the seat back cushion frame.

  28. Unzip the zippers.
  29. GM6420691Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Frame Rear Finish Cover Fastener (1) Remove [5x]

  30. Rear Seat Frame Rear Finish Cover (2) - Remove
  31. GM6419344Courtesy of GENERAL MOTORS COMPANY

    Release hog rings and retainers as necessary.

  32. Rear Seat Back Cover and Pad Assembly (1) - Remove

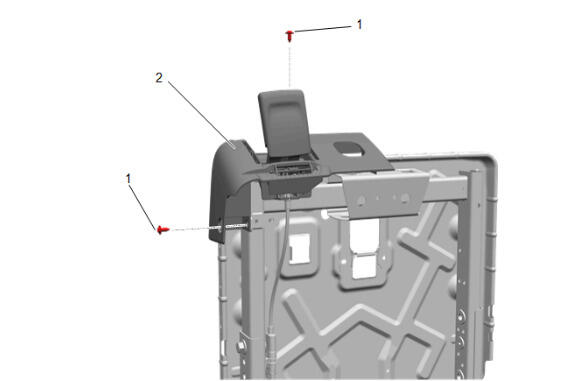

  33. GM6423247Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Latch Release Handle Bolt (1) - Remove [2x]

  34. Disconnect the cable.
  35. Rear Seat Back Latch Release Handle (2) - Remove

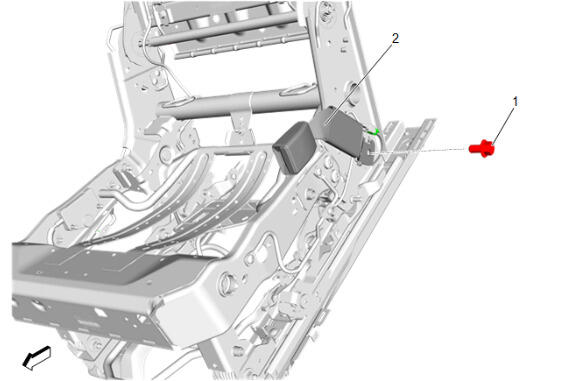

  36. GM6657898Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Buckle Bolt (1) - Remove

  37. Disconnect the electrical connector.
  38. Rear Seat Belt Buckle (2) - Remove

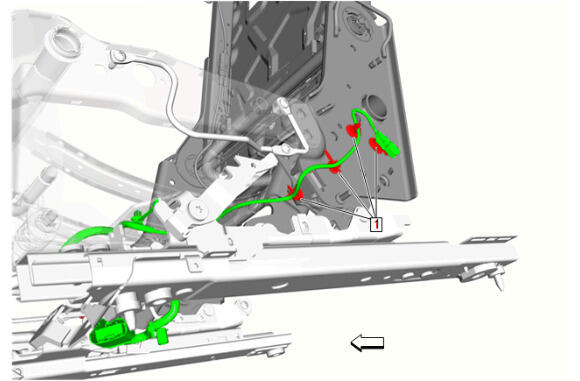

  39. GM6657900Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector Clips (1) - Remove [4x]

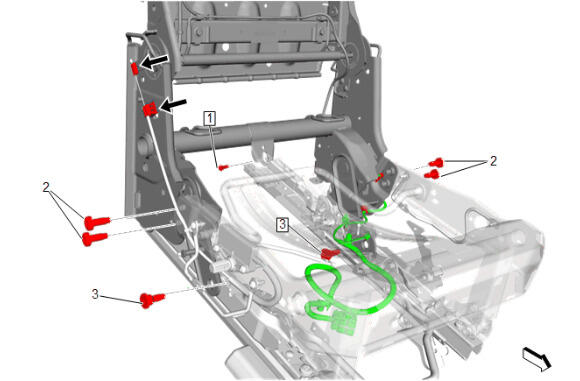

  40. GM6657899Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion Frame Bolt (1) - Remove

  41. Rear Seat Cushion Frame Bolt (2) - Remove [4x]
  42. Rear Seat Back Frame Bolt (3) - Remove [2x]
  43. Release the rear seat latch cable end from the rear seat frame.

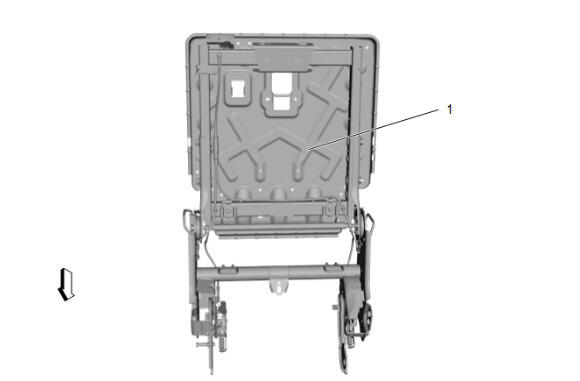

  44. GM6657901Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Frame (1) - Remove
