Removal Procedure
- Rear Seat - Remove - Rear Seat Removal and Installation (Captain)

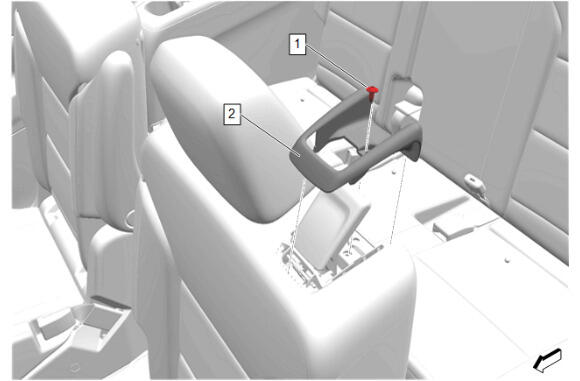

Rear Seat Recliner Handle Retainer (1) - Remove
- Rear Seat Recliner Handle (2) - Remove
Rear Seat Frame Outer Finish Cover Bolt (1) - Remove [2x]
- Rear Seat Frame Outer Finish Cover (2) - Remove
Rear Seat Bolt Cap (1) - Remove
- Rear Seat Outer Hinge Finish Cover Bolt (2) - Remove
- Rear Seat Outer Hinge Finish Cover (3) - Remove
Rear Seat Frame Inner Finish Cover Bolt (1) - Remove [2x]
- Rear Seat Frame Inner Finish Cover (2) - Remove
Rear Seat Bolt Cap (1) - Remove
- Rear Seat Inner Hinge Finish Cover Bolt (2) - Remove
- Rear Seat Inner Hinge Finish Cover (2) - Remove
Depress the Rear Seat Head Restraint Button Guide while lifting upward on the rear seat head restraint (2).
- Rear Seat Head Restraint (2) - Remove
Using a suitable flat-bladed tool, slide the tool along the outside of the rear seat head restraint guide (1) until it finds the slot. Push the plastic tab of the rear seat head restraint guide inward and pull upward to remove from the seat back frame.
- Rear Seat Head Restraint Guide (1) - Remove [2x]
Rear Seat Back Latch Release Handle Bezel Fastener (1) - Remove
- Rear Seat Back Latch Release Handle Bezel (2) - Remove
Use a flat bladed plastic trim tool to release the retaining tabs.
- Rear Seat Anchor Plate Bezel (1) - Remove
Rear Seat Armrest Support Finish Cover (1) - Remove
- Rear Seat Armrest Fastener (2) - Remove
- Rear Seat Armrest (3) - Remove
Disengage the J-channel retainers from the seat back cushion frame.
- Unzip the zippers from the front seat back cushion cover and pad assembly (1).
Rear Seat Frame Rear Finish Cover Fastener (1) Remove [5x]
- Rear Seat Frame Rear Finish Cover (2) - Remove
Release hog rings and retainers as necessary.
- Rear Seat Back Cover and Pad Assembly (1) - Remove

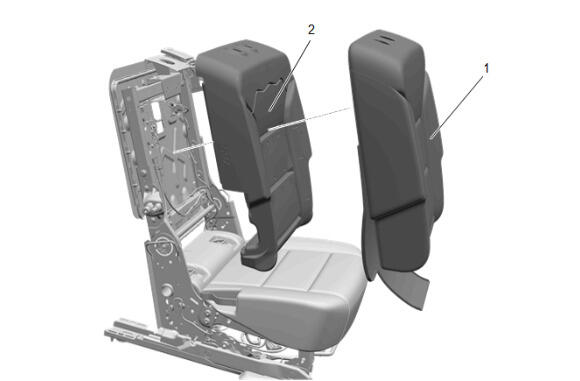

Remove the rear seat back cover hog rings retaining the rear seat back cover (1) to the rear seat back pad (2).
- Remove the rear seat back cover (1) from the rear seat back pad (2).
