Home >> Chevrolet >> 2025 >> Traverse LT, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Seat Hardware, Seat Trim, And Upholstery (2 Of 2) >> Repair Instructions (2 Of 2) >> Rear Seat Adjuster Release Lever Replacement (Right Side) >> Removal Procedure

Removal Procedure

  1. GM6480218Courtesy of GENERAL MOTORS COMPANY

    Rear Seat - Right Side (4) - Remove - Rear Seat Removal and Installation (Right Side)

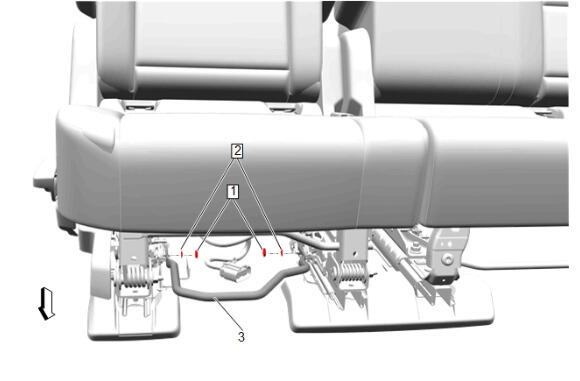

  2. GM6657904Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Nut (1) - Remove [2x]

  3. Rear Seat Cushion Bracket Washer (2) - Remove [2x]
  4. Rear Seat Adjuster Release Lever (3) - Remove
