Removal Procedure

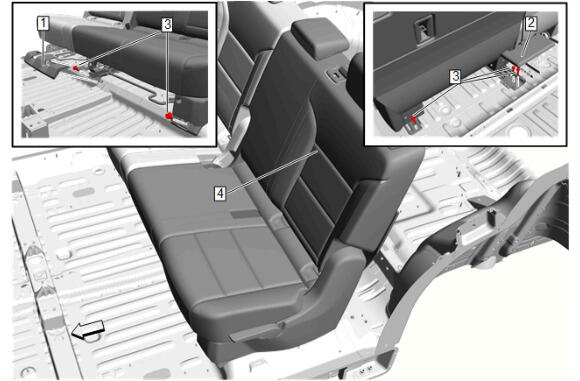

  1. GM6480218Courtesy of GENERAL MOTORS COMPANY

    Rear Seat- Left Side (4) - Remove - Rear Seat Removal and Installation (Left Side)

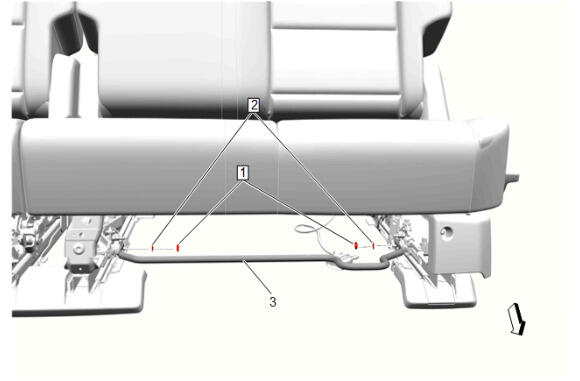

  2. GM6657905Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Nut (1) - Remove [2x]

  3. Rear Seat Cushion Bracket Washer (2) - Remove [2x]
  4. Rear Seat Adjuster Release Lever (3) - Remove
