Removal Procedure
- 3rd Row Seat Back Cover and Pad - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Left Side) 3rd Row Seat Back Cover and Pad Removal and Installation (Right Side)
Rear Seat Trim Panel Bolt (1) - Remove [4x]
- 3rd Row Seat Frame Inner Finish Cover (2) - Remove [2x]
- WARNING:
Refer to Eye Protection Warning .

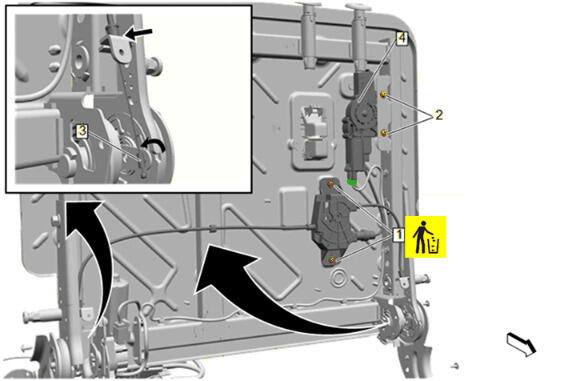

3rd Row Seat Pull Strap Rivet (1) - Remove and DISCARD [2x]
- 3rd Row Seat Pull Strap Bolt (2) - Remove [2x]
- Disconnect the cable (3) from the recliner.
- Disconnect the electrical connector.
- 3rd Row Seat Pull Strap (4) - Remove
