Removal Procedure

  1. 3rd Row Seat Back Cover and Pad - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Left Side) 3rd Row Seat Back Cover and Pad Removal and Installation (Right Side)
  2. GM4381040Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Eye Protection Warning .

    3rd Row Seat Pull Strap Rivet (1) - Remove

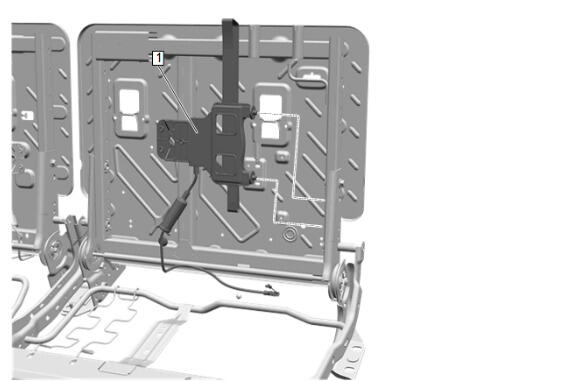

  3. GM6417876Courtesy of GENERAL MOTORS COMPANY

    Release the retainers as necessary

  4. 3rd Row Seat Pull Strap (1) - Remove
