Removal Procedure

3rd Row Seat - Left Side - Remove - 3rd Row Seat Removal and Installation (- AS8) 3rd Row Seat Removal and Installation (AS8)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Right side shown, Left side similar.

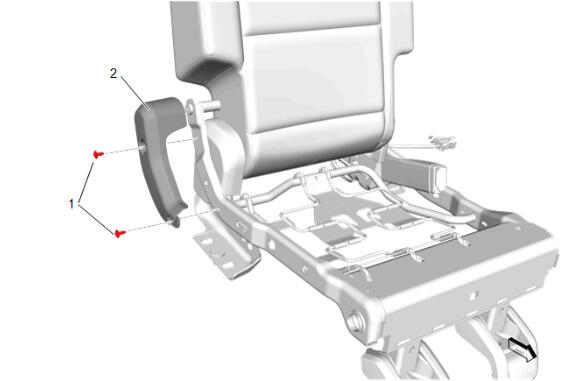

{If equipped} Rear Seat Trim Panel Bolt (1) @ 3rd Row Seat Back Hinge Finish Cover (2) - Remove [2x]
{If equipped} 3rd Row Seat Back Hinge Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Right side shown, Left side similar.

{If equipped} 3rd Row Seat Hinge Finish Cover Bolt (1) - Remove
{If equipped} 3rd Row Seat Hinge Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic trim tool to release the retaining tabs.

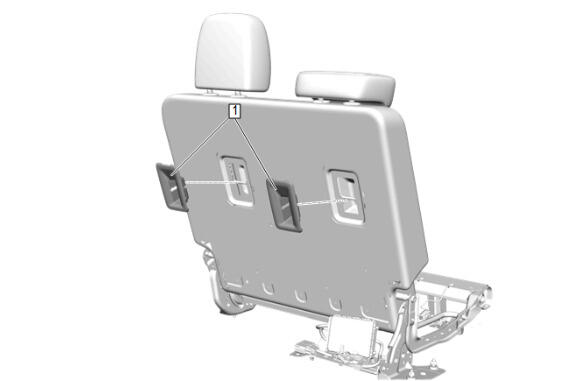

3rd Row Seat Anchor Plate Bezel (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

If equipped Use a flat bladed plastic trim tool to release the retaining tabs.

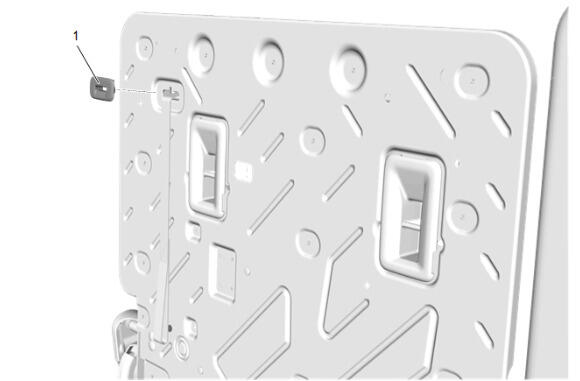

If equipped 3rd Row Seat Back Latch Bezel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

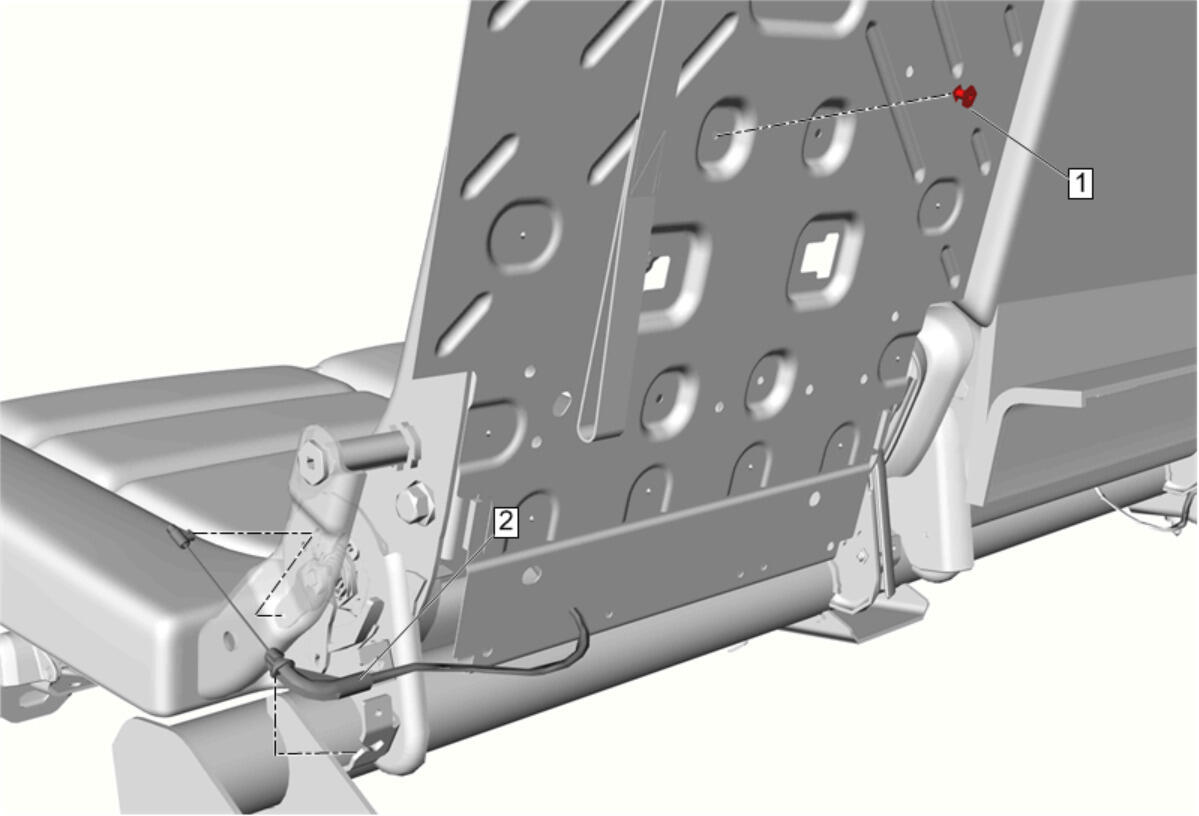

Disconnect the cable (2) from the recliner and reposition, if equipped.
Courtesy of GENERAL MOTORS COMPANY

Disengage the J-channel retainers from the seat back cushion frame.
Position the 3rd row seat back cover and 3rd row seat back pad (1).
Remove the 4 rear seat riser finish cover retainers (2).
3rd Row Seat Back Panel (3) - Remove
Unzip the zippers.
Reposition the seat back cover and pad.
Courtesy of GENERAL MOTORS COMPANY

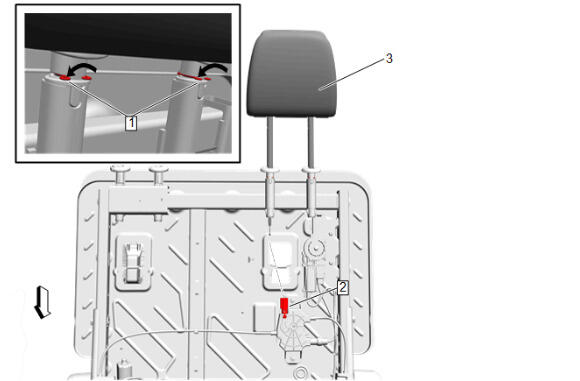

Using a suitable pointed or flat bladed tool to release the 3rd Row Seat head restraint guide clips (1)
Disconnect the head restraint cable from the rear seat Ratio box lever.
Remove the retainer from the head restraint cable.
3rd Row Seat Head Restraint Retainer (2) - Remove
3rd Row Seat Head Restraint (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Release the retaining tabs.
3rd Row Seat Head Restraint Guide (1) - Remove
