Removal Procedure

  1. 3rd Row Seat Back Cover and Pad - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Left Side) 3rd Row Seat Back Cover and Pad Removal and Installation (Right Side)

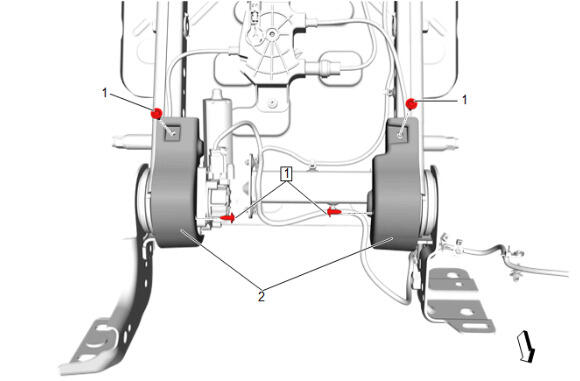

  2. GM6560851Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) - Remove [4x]

  3. 3rd Row Seat Frame Inner Finish Cover (2) - Remove [2x]
