Removal Procedure

  1. 3rd Row Seat Cushion Cover and Pad - Right Side - Remove - 3rd Row Seat Cushion Cover and Pad Removal and Installation (Right Side)
  2. GM6560456Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) @ 3rd Row Seat Back Hinge Finish Cover (2) - Remove [2x]

  3. 3rd Row Seat Back Hinge Finish Cover (2) - Remove
  4. GM6560457Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) @ 3rd Row Seat Back Hinge Finish Cover (2) - Remove [2x]

  5. 3rd Row Seat Back Hinge Finish Cover (2) - Remove
  6. GM6560458Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Riser Cover Retainers (1) - Remove [4x]

  7. 3rd Row Seat Riser Cover (2) - Remove [2x]

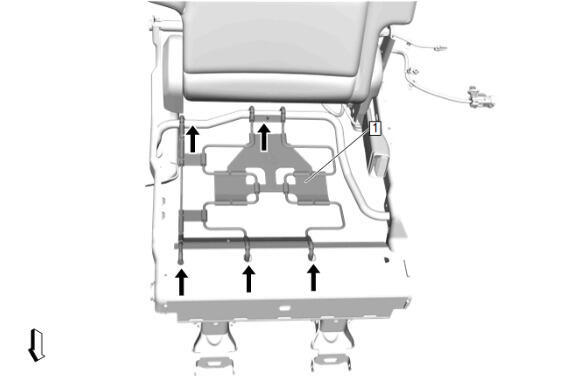

  8. GM6560459Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tabs.

  9. 3rd Row Seat Cushion Pad Support (1) - Remove

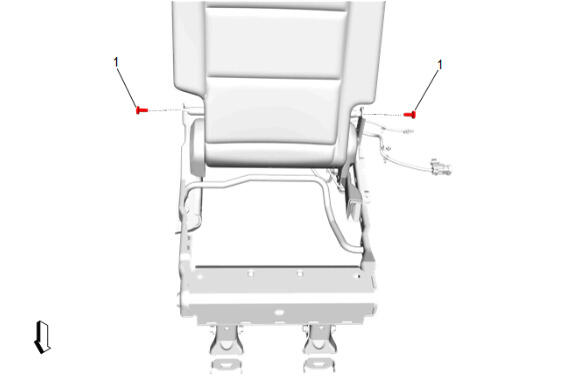

  10. GM6560460Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Bolt (1) - Remove [2x]

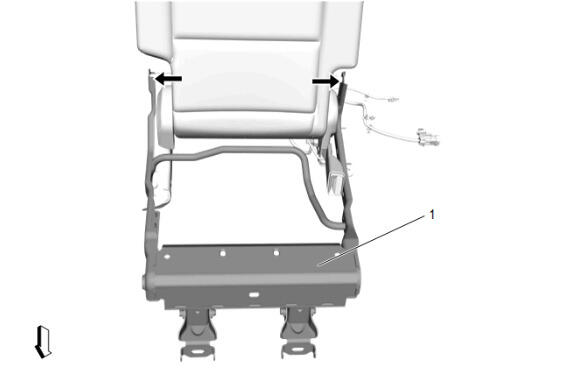

  11. GM6560461Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Cushion Frame (1) - Remove

  12. Transfer components as necessary.
