Removal Procedure
- 3rd Row Seat - Remove - 3rd Row Seat Removal and Installation (- AS8) 3rd Row Seat Removal and Installation (AS8)
Disengage the J-channel retainers from the seat cushion frame.

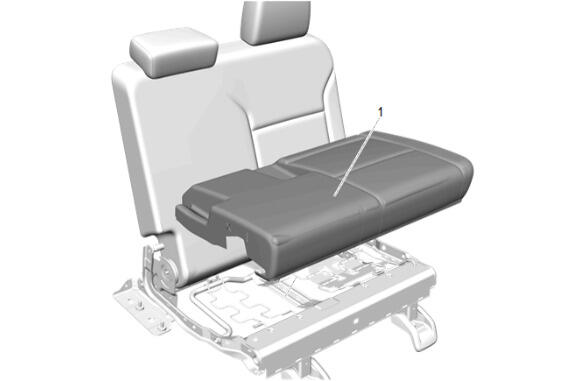

- Remove the 3rd Row Seat Cushion Cover and Pad (1) as an assembly.
Disengage the hook and loop fasteners and seperate the cover from the pad.

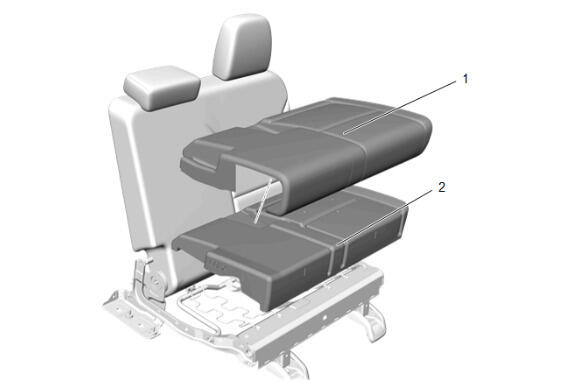

- 3rd Row Seat Cushion Cover (1) @ 3rd Row Seat Cushion Pad (2) - Remove
