Removal Procedure

  1. 3rd Row Seat Back Cover and Pad - Right Side - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Right Side)

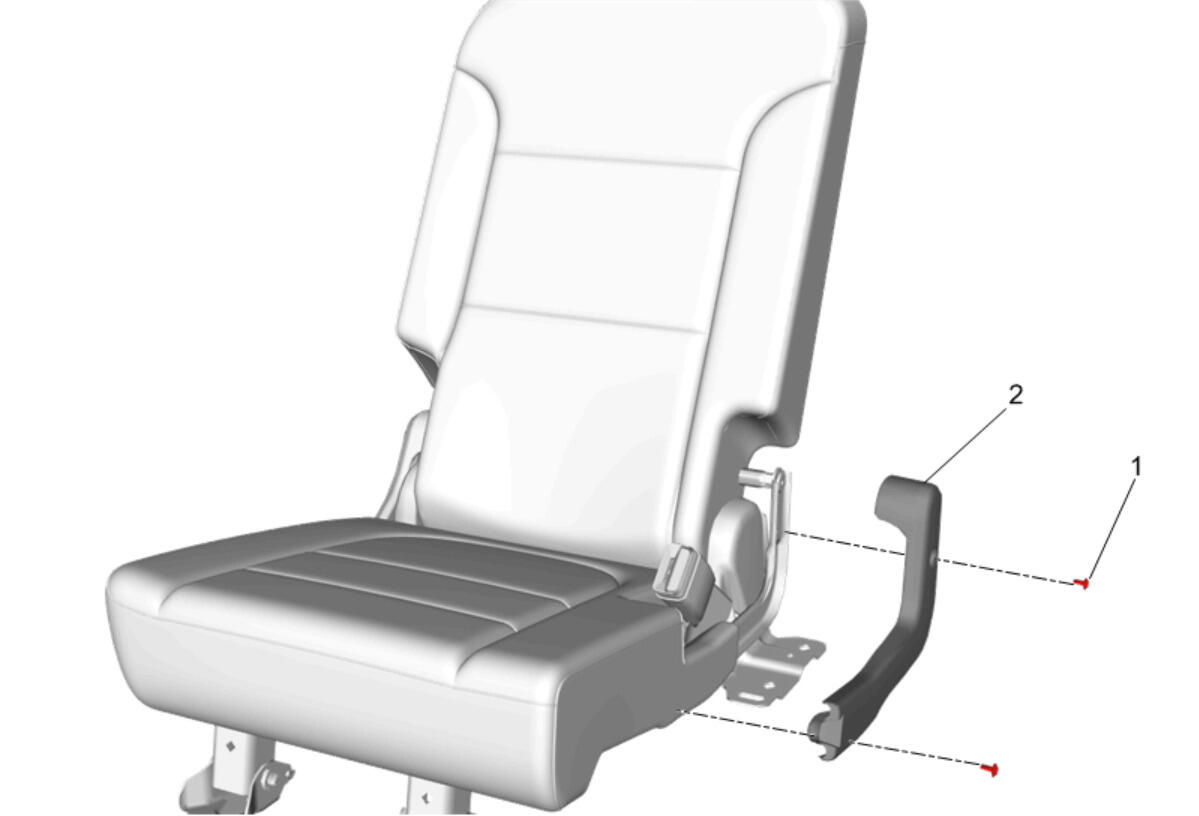

  2. GM4751695Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) @ 3rd Row Seat Back Hinge Finish Cover (2) - Remove [2x]

  3. 3rd Row Seat Back Hinge Finish Cover (2) - Remove

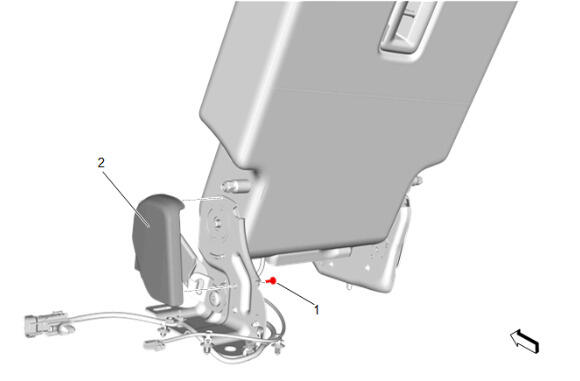

  4. GM6560841Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Inner Cover Bolt (1) - Remove

  5. 3rd Row Seat Hinge Finish Inner Cover (2) - Remove

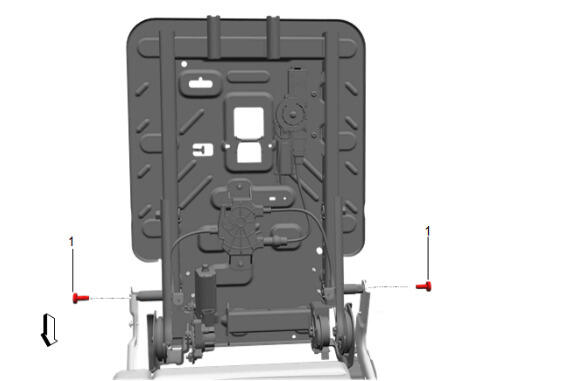

  6. GM6674311Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Bolt (1) - Remove [2x]

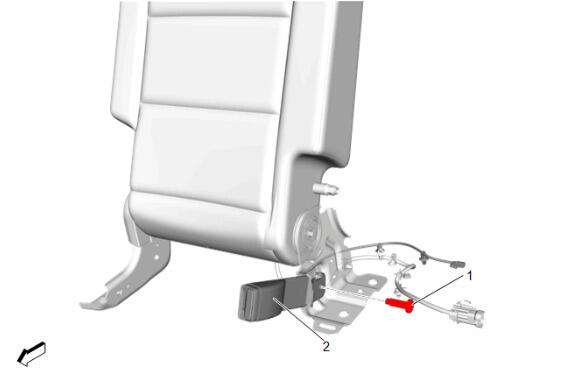

  7. GM6560842Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Buckle Bolt (1) - Remove

  8. Disconnect the wiring harness retainers as necessary.
  9. 3rd Row Seat Belt Buckle (2) - Remove
  10. GM6560851Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) - Remove [4x]

  11. 3rd Row Seat Frame Inner Finish Cover (2) - Remove [2x]

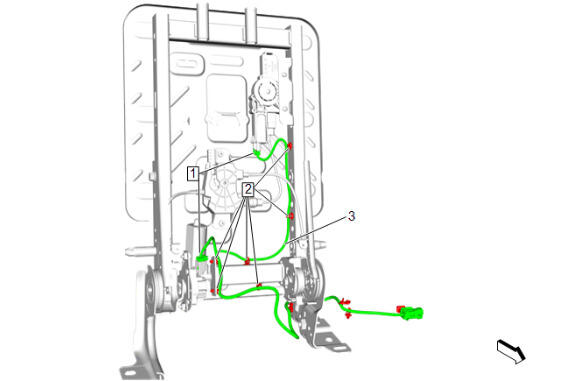

  12. GM6560850Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect [2x]

  13. Wiring Harness Clips (2) - Remove [6x]
  14. 3rd Row Seat Wiring Harness (3) - Remove

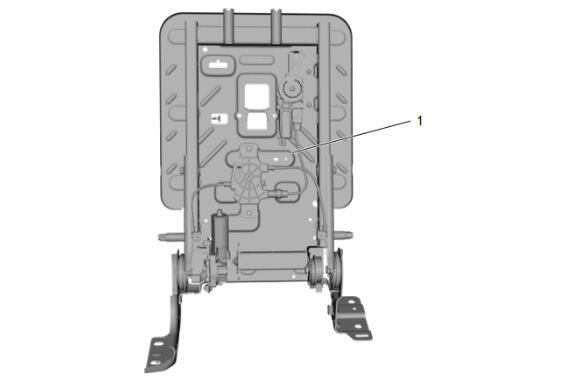

  15. GM6560852Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Frame (1) - Remove



  1. 3rd Row Seat Back Cover and Pad - Right Side - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Right Side)
  2. GM4751695Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) - Remove [2x]

  3. 3rd Row Seat Back Hinge Finish Cover (2) - Remove
  4. GM6560841Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) - Remove

  5. 3rd Row Seat Hinge Finish Cover (2) - Remove
  6. GM6674311Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Bolt (1) - Remove [2x]

  7. GM6560842Courtesy of GENERAL MOTORS COMPANY

    3rd Row Center Seat Belt Buckle Bolt (1) - Remove

  8. Disconnect the wiring harness retainers as necessary.
  9. 3rd Row Seat Belt Buckle (2) - Remove

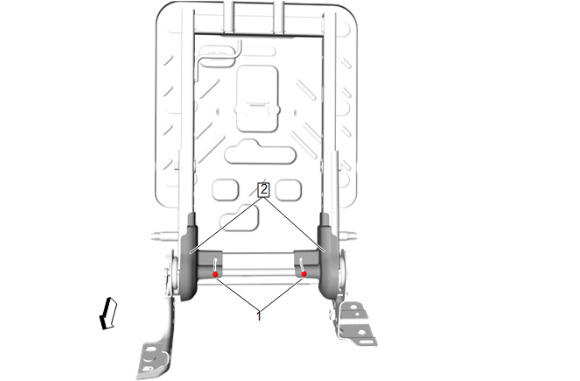

  10. GM6657826Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) - Remove [2x]

  11. 3rd Row Seat Frame Inner Finish Cover (2) - Remove [2x]

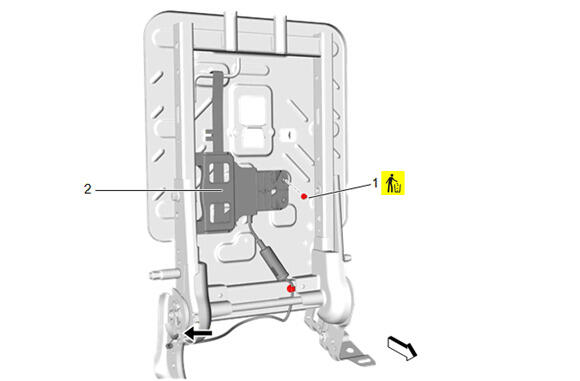

  12. GM6657823Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Eye Protection Warning .

    3rd Row Seat Pull Strap Rivet (1) - Remove and DISCARD

  13. Disconnect the cable from the recliner.
  14. 3rd Row Seat Pull Strap (2) - Remove

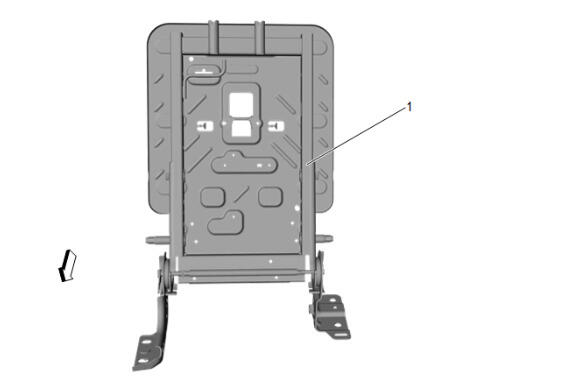

  15. GM6657819Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Frame (1) - Remove
