Removal Procedure

  1. 3rd Row Seat Back Cover and Pad - Left Side - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Left Side)

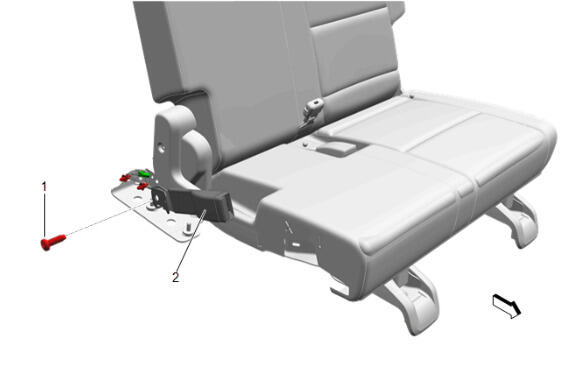

  2. GM6674278Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Buckle Bolt (1) - Remove

  3. Disconnect the wiring harness retainers as necessary.
  4. 3rd Row Seat Belt Buckle (2) - Remove
  5. GM6560457Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) @ 3rd Row Seat Back Hinge Finish Cover (2) - Remove [2x]

  6. 3rd Row Seat Back Hinge Finish Cover (2) - Remove
  7. GM6560843Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Inner Cover Bolt (1) - Remove

  8. 3rd Row Seat Hinge Finish Inner Cover (2) - Remove

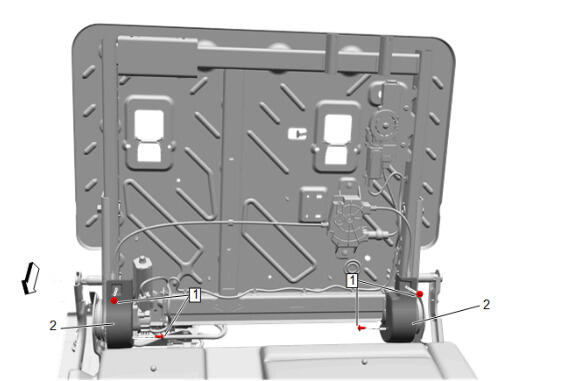

  9. GM6674295Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) - Remove [4x]

  10. 3rd Row Seat Frame Inner Finish Cover (2) - Remove [2x]

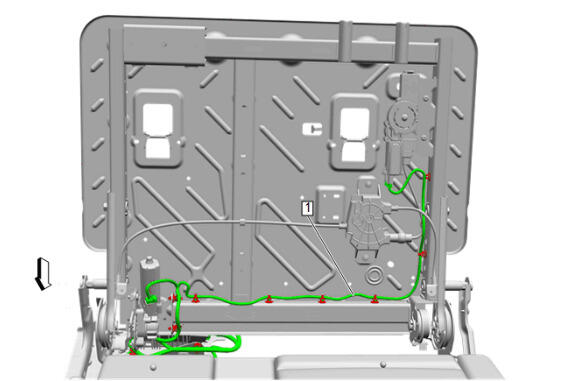

  11. GM6674296Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  12. Release the clips with a suitable tool.
  13. 3rd Row Seat Wiring Harness (1) - Remove

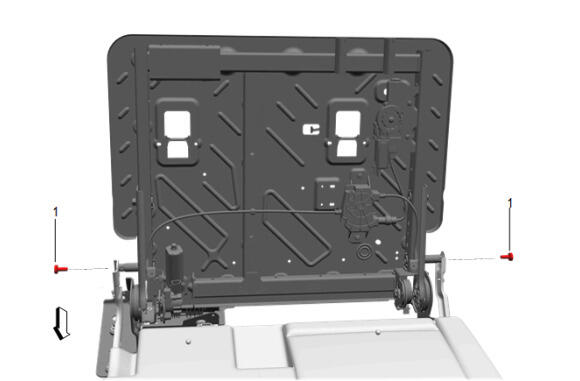

  14. GM6674298Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Bolt (1) - Remove [2x]

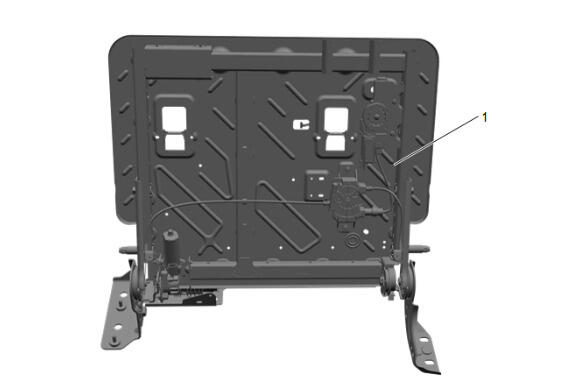

  15. GM6674297Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Frame (1) - Remove

  16. Transfer components as necessary.


  1. 3rd Row Seat Back Cover and Pad- Left Side - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Left Side)
  2. GM6674278Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Buckle Bolt (1) - Remove

  3. Disconnect the wiring harness retainers as necessary.
  4. 3rd Row Seat Belt Buckle (2) - Remove
  5. GM6560457Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) @ 3rd Row Seat Back Hinge Finish Cover (2) - Remove [2x]

  6. 3rd Row Seat Back Hinge Finish Cover (2) - Remove
  7. GM6560843Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Right side shown, Left side similar.

    3rd Row Seat Hinge Finish Cover Bolt (1) - Remove

  8. 3rd Row Seat Hinge Finish Cover (2) - Remove

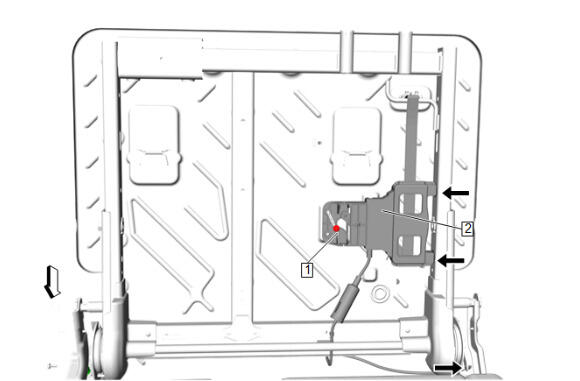

  9. GM6674279Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Pull Strap Rivet (1) - Remove

  10. Release the retainers as necessary
  11. 3rd Row Seat Pull Strap (2) - Remove

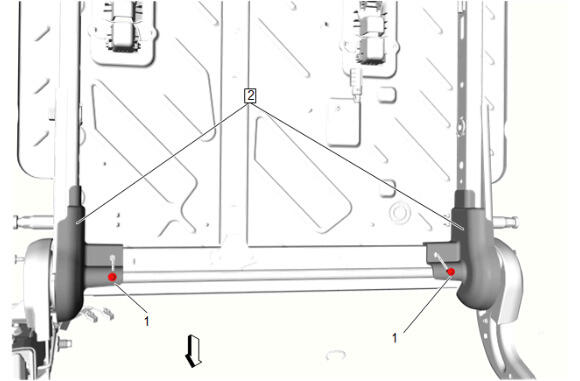

  12. GM6657821Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Trim Panel Bolt (1) - Remove [2x]

  13. 3rd Row Seat Frame Inner Finish Cover (2) - Remove [2x]

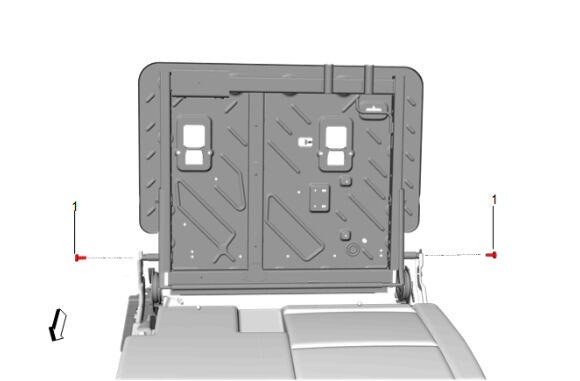

  14. GM6674281Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Bolt (1) - Remove [2x]

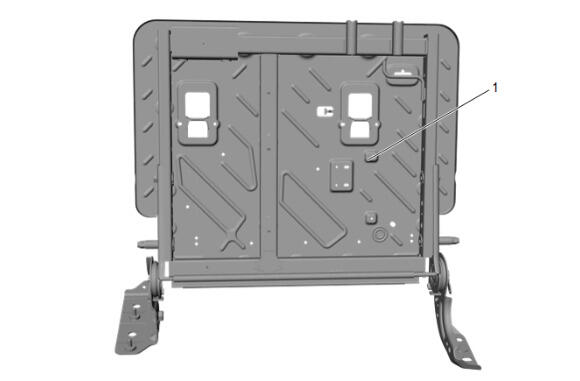

  15. GM6674280Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Frame (1) - Remove
