Removal Procedure

  1. 3rd Row Seat Back Cover and Pad - Left Side - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (Left Side)

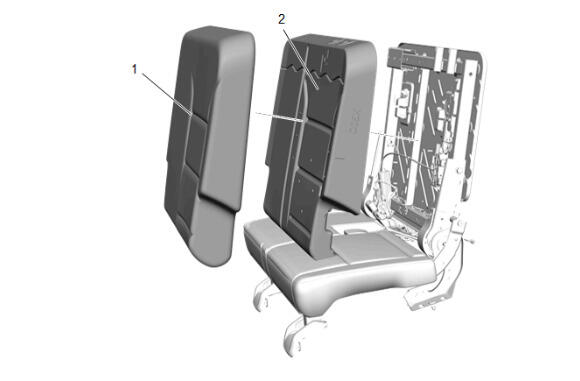

  2. GM6417834Courtesy of GENERAL MOTORS COMPANY

    Remove the rear seat back cover hog rings retaining the 3rd row seat back cover (1) to the 3rd row seat back pad (2).

  3. Remove the 3rd row seat back cover (1) from the 3rd row seat back pad (2).
