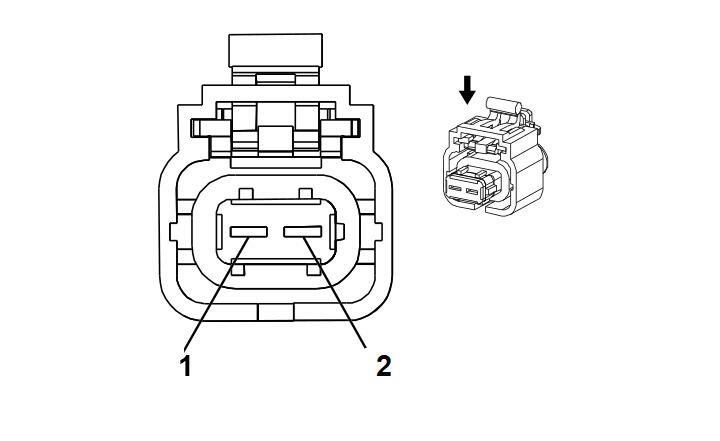

Q42 Turbocharger Wastegate Solenoid Valve
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 55566842
- Service Connector: 13395378
- Description: 2-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN / YE |
258 |
Turbocharger Wastegate Solenoid Valve Control |
I |
|
| 2 |
0.5 |
GY / GN |
3216 |
Turbocharger Boost Control Solenoid Valve Control |
I |
|
