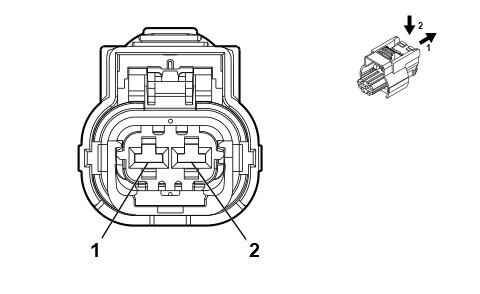

M104L Park Brake Actuator - Left
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 35182448
- Service Connector: 85052184
- Description: 2-Way F 2.8 MCP Series, Sealed (BK with GY Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
WH |
2001 |
Left Park Brake Motor Apply Control |
I |
- |
| 2 |
2.5 |
GY / BK |
4369 |
Left Park Brake Motor Low Reference |
I |
- |
