M29L Headlamp Leveling Actuator - Left
 Courtesy of GENERAL MOTORS COMPANY
|

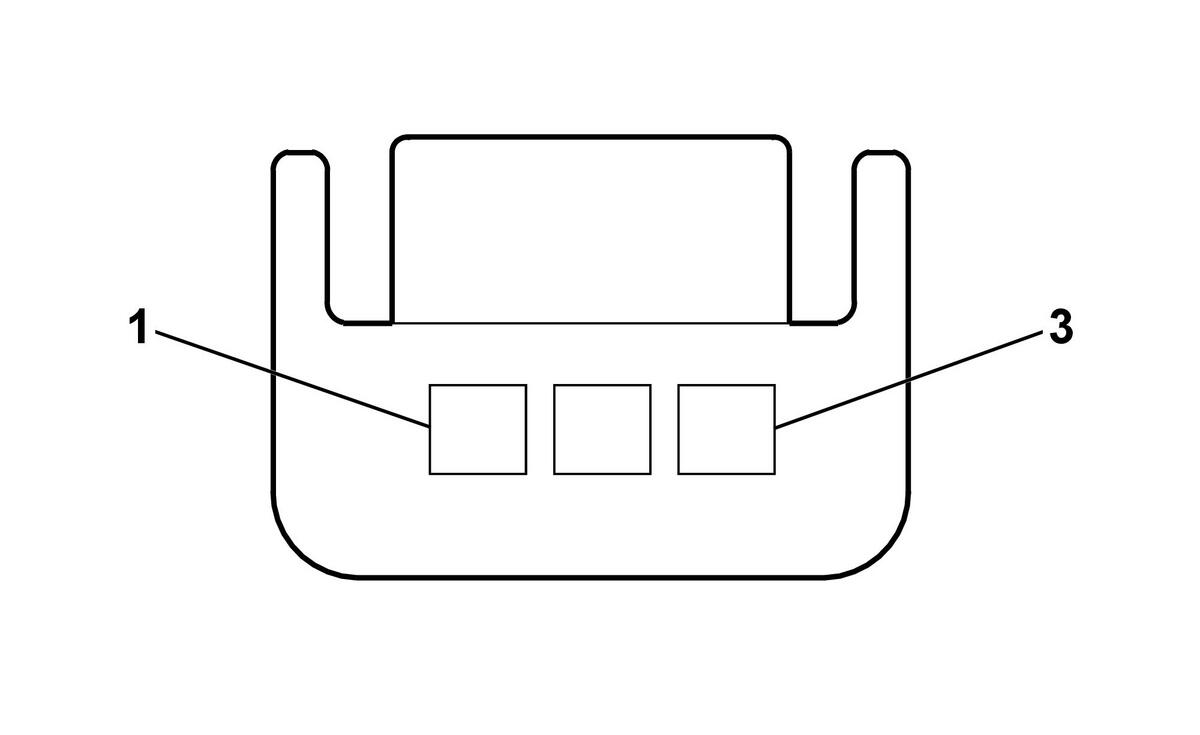

Connector Part Information
- Harness Type: Front Headlamp
- OEM Connector: KH1300013-20
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 020 SMT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
50 |
Ground |
I |
- |
| 2 |
0.5 |
BN / YE |
189 |
Headlamp Leveling Actuator Control |
I |
- |
| 3 |
0.5 |
VT / WH |
39 |
Run/Crank Ignition 1 Voltage |
I |
- |
