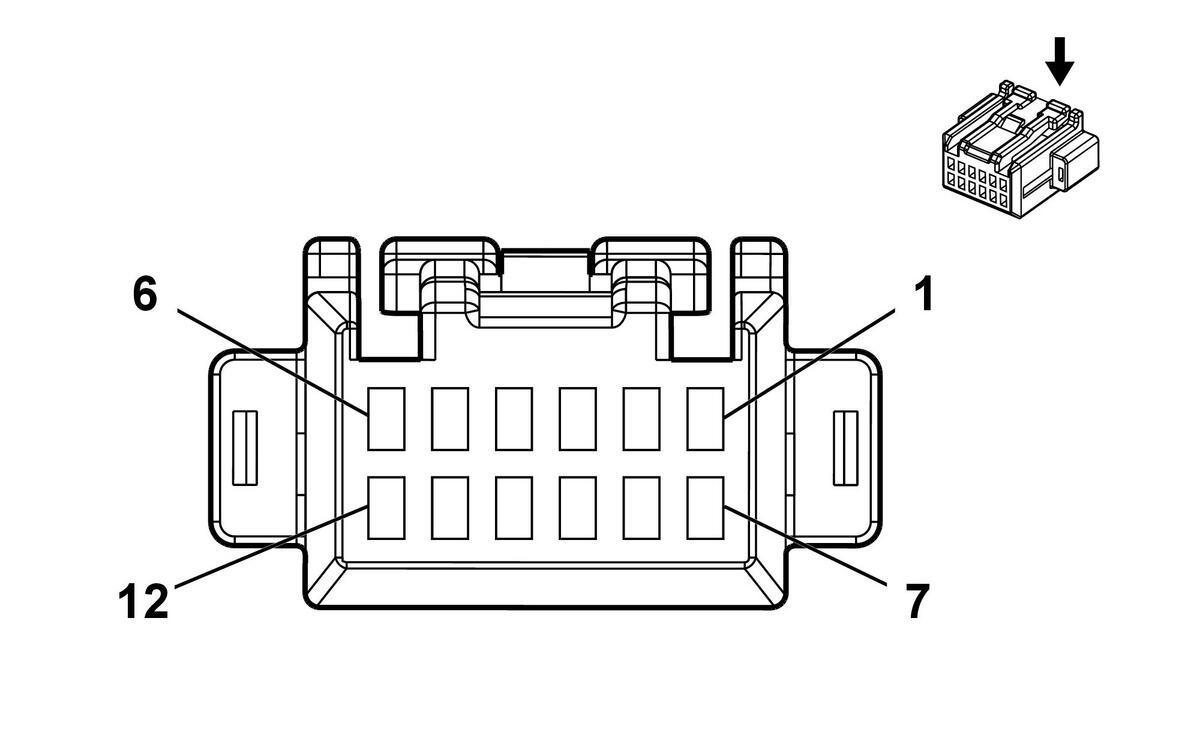

E4J Park Lamp - Left Front
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Front Headlamp
- OEM Connector: HK875-12021
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F 025 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK |
150 |
Ground |
I |
- |
| 4 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
