A9A Outside Rearview Mirror - Driver

Courtesy of GENERAL MOTORS COMPANY

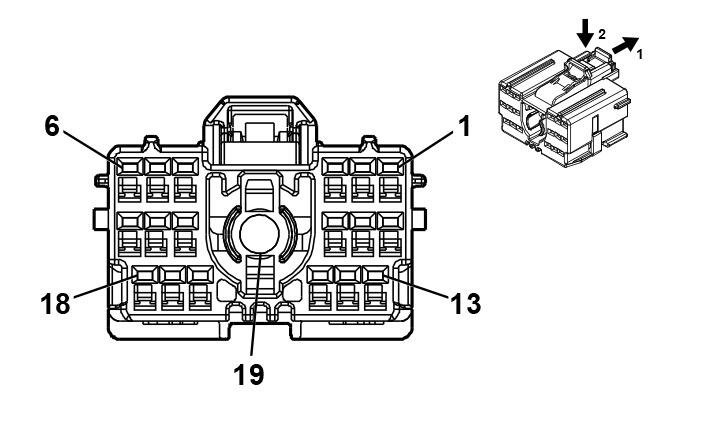

Connector Part Information Harness Type: Front Side Door Door Wiring Harness - Driver OEM Connector: 6098-8386 Service Connector: Service by Harness - See Part Catalog Description: 19-Way F 1.2 MCON, Coaxial Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (L-GN)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5 0.5	BN / BK BN / BK	3389 3389	Driver Outside Rearview Mirror Motor Right [+] Left [-] Control Driver Outside Rearview Mirror Motor Right [+] Left [-] Control	I I	(DWV/DLF/DXD) DWV/DLF/DXD
2	0.5 0.5	VT / BU VT / BU	3390 3390	Driver Outside Rearview Mirror Motor Up [+] Down [-] Control Driver Outside Rearview Mirror Motor Up [+] Down [-] Control	I I	(DWV/DLF/DXD) DWV/DLF/DXD
3	0.5	WH / BN	3410	Mirror Outside Rearview Mirror Fold Control	I	DXD
4	0.35	GY / YE	1760	Left Side Object Detection LED Control	I	UKC
5 - 6	-	-	-	Not Occupied	-	-
7	0.5 0.5	BN / YE BN / YE	2267 2267	Outside Rearview Mirror Heater Control Outside Rearview Mirror Heater Control	I I	(DLF/DXD) DLF/DXD
8	0.35	BU / WH	1314	Left Front Turn Signal Lamp Control	I	DXD
9	0.5 0.5	BK BK	450 450	Ground Ground	I I	(DLF/DXD/UKC) DLF/DXD/UKC
10 - 13	-	-	-	Not Occupied	-	-
14	0.5 0.5	YE / BN YE / BN	3391 3391	Driver Mirror Motor Common Control Driver Mirror Motor Common Control	I I	(DWV/DLF/DXD) DWV/DLF/DXD
15	0.5	VT / YE	3409	Outside Rearview Mirror Motor Unfold Control	I	DXD
16 - 19	-	-	-	Not Occupied	-	-
