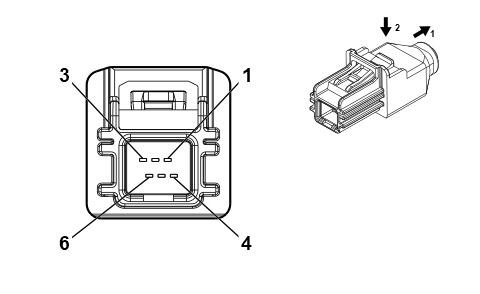

A22 Radio Controls X2 (IVA)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel Wiring Harness
- OEM Connector: 100337-3198
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 6-Way M HSAL-2 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
LVDS |
- |
(Infotainment) Infotainment Display Signal |
I |
- |
