A11 Radio X5 (IVA)
 Courtesy of GENERAL MOTORS COMPANY
|

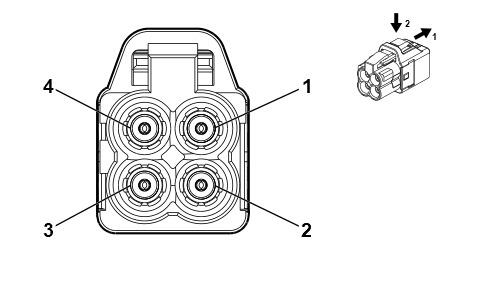

Connector Part Information
- Harness Type: Instrument Panel Wiring Harness COAX
- OEM Connector: 13520448
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 4-Way F Mini Coax Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0 |
BARE |
6001 |
Coaxial Antenna RF Signal |
I |
- |
| 2 |
0 |
BARE |
4721 |
Rearview Camera LVDS (Low Voltage Differential Signaling) Coaxial Signal |
I |
- |
| 3 |
0 |
BARE |
3137 |
Coaxial Antenna WLAN Signal |
I |
- |
| 4 |
0 |
BARE |
6130 |
Coaxial Antenna XM Signal |
I |
(IVA+U2K) |
