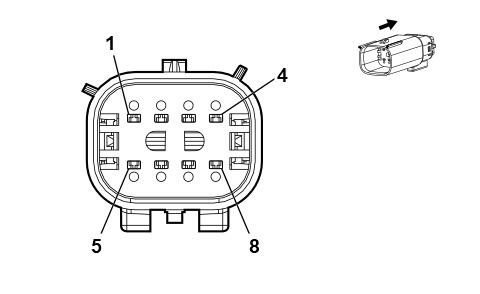

X410 Rear Body Structure Stop Lamp to Body Wiring Harness (MAW / MBJ)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Rear Body Structure Stop Lamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 33482-4852
- Service Connector: 85084417
- Description: 8-Way M 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| II |
Not required |
J-35616-3 (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN / BU |
2509 |
I |
- |
Left Rear Park Lamp Control |
1 |
0.5 |
BN / BU |
2509 |
II |
- |
| 2 |
0.5 |
GY / YE |
7542 |
I |
- |
Left Rear Stop Lamp Control |
2 |
0.5 |
GY / YE |
7542 |
II |
- |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
0.75 |
BU / WH |
1334 |
I |
- |
Left Rear Turn Signal Lamp Control 2 |
4 |
0.75 |
BU / WH |
1334 |
II |
- |
| 5 |
0.5 |
BK |
4650 |
I |
- |
Ground |
5 |
0.5 |
BK |
4650 |
II |
- |
| 6 |
0.75 |
GN / WH |
24 |
I |
- |
Backup Lamp Control |
6 |
0.75 |
GN / WH |
24 |
II |
- |
| 7 |
0.75 |
BK |
4650 |
I |
- |
Ground |
7 |
0.75 |
BK |
4650 |
II |
- |
| 8 |
- |
- |
- |
- |
- |
Not Occupied |
8 |
- |
- |
- |
- |
- |
