Installation Procedure

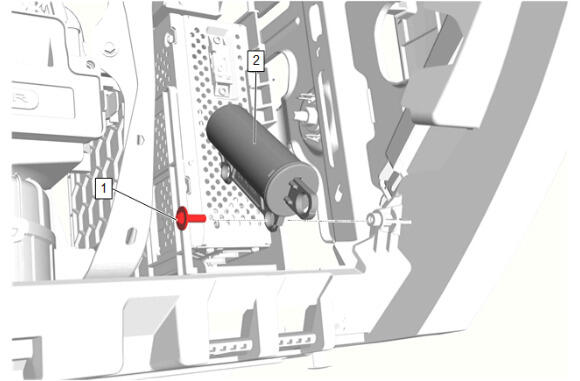

  1. GM5950073Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Compartment Door Dampener Bolt (1) - Install and tighten - Fastener Specifications
  3. GM5908243Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

  4. GM5949887Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (2) @ Instrument Panel Compartment Door Dampener (1) - Connect
