Installation Procedure
Ensure the filter element (1) is installed in the correct hydraulic bore with the pin on the filter element installed in the correct bore.

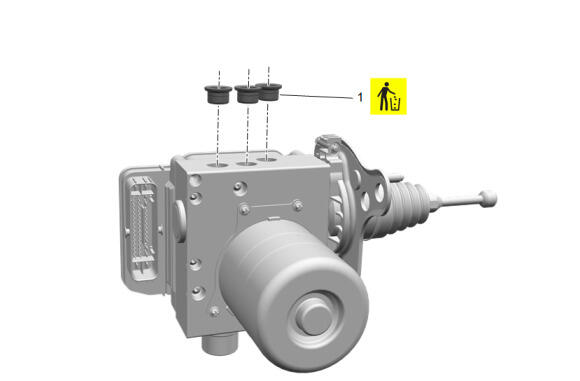

Lubricate the brake master cylinder reservoir grommets (1) with brake fluid. Adhesives, Fluids, Lubricants, and Sealers (except GMNA) , or Adhesives, Fluids, Lubricants, and Sealers (GMNA)
- Brake Master Cylinder Reservoir Grommet (1) - Install NEW [3x]

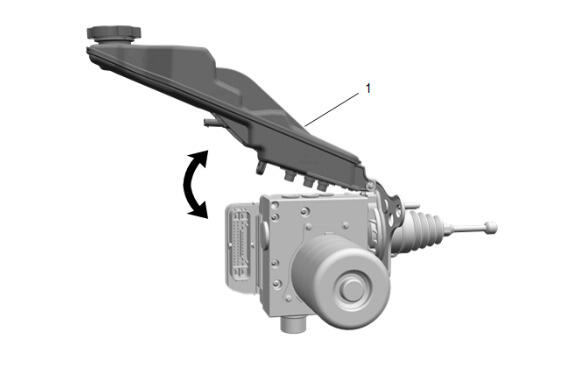

Install the brake master cylinder reservoir (1) by engaging the rear clip and lowering the front to the brake master cylinder.
- CAUTION:
Brake Master Cylinder Reservoir Bolt (1) - Install and tighten - Fastener Specifications
Brake Master Cylinder (3) - Install
- Brake Master Cylinder Bracket Nut (2) - Install and tighten - Fastener Specifications
- Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications
Brake and Accelerator Pedal Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve - Install and tighten [4x] - Fastener Specifications
Electrical Connector (2) @ Electronic Brake Control Module (2) - Connect
- Electrical Connector (1) @ Brake Fluid Level Sensor (2) - Disconnect
Brake Pedal Push Rod Retainer (1) @ Brake Pedal Push Rod (3) - Install NEW
- Brake Pedal Push Rod (3) @ Brake Pedal (2) - Connect
Floor Front Air Outlet Duct - Left Side (2) - Install
- Front Floor Console Rear Air Duct Retainer (1) - Install
Battery Tray Bracket (3) - Install
- Battery Tray Bracket Nut (2) - Install and tighten - Fastener Specifications
- Battery Tray Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect any harness retainers to the battery tray bracket.
Battery Tray (2) - Install
- Battery Tray Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Connect any harness retainers attached to the battery tray.
Air Cleaner Assembly (1) - Install
Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Install
- Air Cleaner Clamp (1) - Tighten - Fastener Specifications
Wiring Harness Retainer (2) - Install
- Electrical Connector (1) - Connect
Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Install
Intake Air Duct (1) - Install
Intake Air Duct Retainer (1) - Install [2x]
Battery (1) - Install
Battery Hold Down Retainer (2) - Install
- Battery Hold Down Bolt (1) - Install and tighten - Fastener Specifications
Battery Hold Down Retainer (3) - Install
- Battery Hold Down Nut (1) - Install and tighten - Fastener Specifications
- Battery Hold Down Bolt (2) - Install and tighten - Fastener Specifications
Battery Distribution Engine Compartment Fuse Block (2) - Install
- Engage the retaining tabs.
- Battery Positive Post Clamp Nut (1) - Tighten - Fastener Specifications
Body Wiring Harness (6) - Install
- Engine Wiring Harness (5) - Install
- Battery Positive Cable (4) - Install
- Body Wiring Harness Terminal Nut (3) - Tighten [4x] - Fastener Specifications
- Engine Wiring Harness Terminal Nut (2) - Tighten - Fastener Specifications
- Battery Positive Cable Nut (1) - Tighten [2x] - Fastener Specifications
Electrical Connector (1) - Connect
Battery Distribution Engine Compartment Fuse Block Cover (1) - Install
- Engage the retaining tabs.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
- Connect the scan tool and perform the brake pressure test.
