Removal Procedure

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

WARNING:

When a liftgate hydraulic system component is removed, installed or disconnected, provide alternate support to avoid the possibility of damage to the vehicle, liftgate hydraulic system, or personal injury.

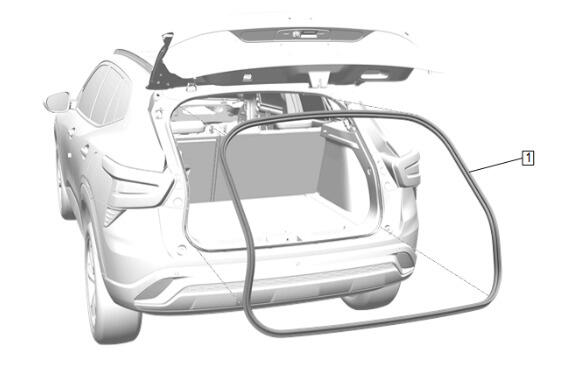

  1. GM5925281Courtesy of GENERAL MOTORS COMPANY

    Start at the upper corner of the liftgate opening and pull the weatherstrip away from the liftgate opening flange.

  2. Liftgate Weatherstrip (1) - Remove
