Removal Procedure

  1. GM5922821Courtesy of GENERAL MOTORS COMPANY

    Open and support the hood.

  2. Front Fender Rear Air Inlet Seal Retainer (1) - Remove
  3. Front Fender Rear Air Inlet Seal (2) - Remove

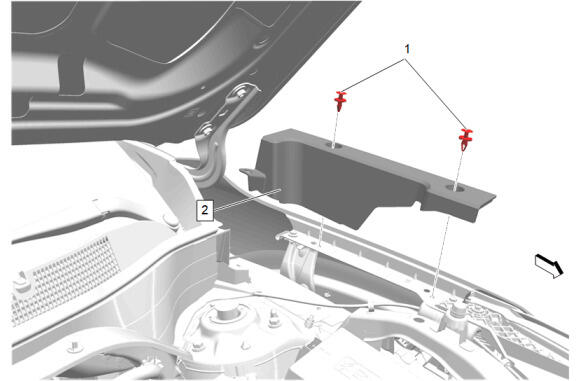

  4. GM5922841Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield Retainer (1) - Remove [2x]

  5. Front Compartment Side Sight Shield (2) - Remove
