Removal Procedure

  1. GM5910805Courtesy of GENERAL MOTORS COMPANY

    With a flat bladed plastic trim tool, release the retaining clips.

  2. Instrument Panel Cluster Trim Plate (1) - Remove
  3. GM6166469Courtesy of GENERAL MOTORS COMPANY

    Release the plastic retaining tabs.

  4. Instrument Panel Cluster Trim Plate Applique (1) - Remove
  5. GM5910807Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Strap Bolt (1) - Remove [4x]

  6. Instrument Panel Instrument Cluster Hood (2) - Remove
  7. GM6166471Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, release the retaining tabs.

  8. Instrument Panel Bolt Cover - Left Side (1) - Remove
  9. GM6171232Courtesy of GENERAL MOTORS COMPANY

    With a flat bladed plastic trim tool, release the retaining clips.

  10. Instrument Panel Bolt Cover - Right Side (1) - Remove
  11. GM6174053Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster Bolt (1) - Remove [4x]

  12. GM6174054Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tab.

  13. Instrument Cluster (1) - Remove
  14. Disconnect the electrical connectors.

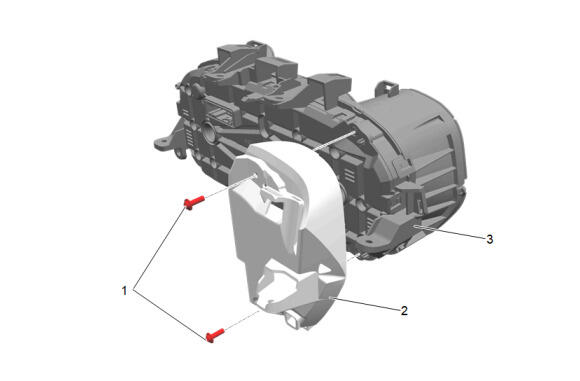

  15. GM6174055Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Cover Bolt (1) - Remove [2x]

  16. Instrument Panel Upper Trim Panel Cover (2) @ Instrument Cluster (3) - Remove
