Fastener Specifications

GM5949571Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [6x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation
2 Front Bumper Fascia Extension Bolt [6x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation
3 Front Bumper Fascia Wheel Opening Bolt [2x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation
GM6192874Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Air Deflector Bolt [5x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Air Deflector Replacement (1RV)
GM5949570Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Guide

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Guide Bolt [2x] - - 4.7 N.m (42 lb in) Front Bumper Fascia Guide Replacement
GM5949573Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Lower Stiffener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Lower Stiffener Bolt [2x] - - 17 N.m (13 lb ft) Front Bumper Fascia Removal and Installation
2 Front Bumper Fascia Lower Stiffener Bolt [3x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Lower Stiffener Replacement (- 1RV) , or Front Bumper Fascia Lower Stiffener Replacement (1RV)
GM5949569Courtesy of GENERAL MOTORS COMPANY
Front Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Impact Bar Bolt [8x] - - 58 N.m (43 lb ft) Front Bumper Impact Bar Replacement

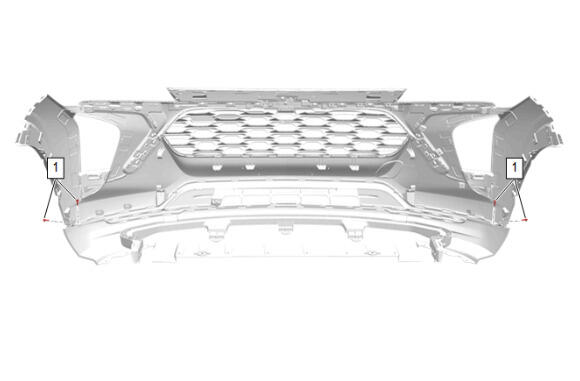

GM5949572Courtesy of GENERAL MOTORS COMPANY
Front Bumper Upper and Lower Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Upper Fascia Replacement (- 1RV) , or Front Bumper Upper Fascia Replacement (1RV)
Front Bumper Lower Fascia Replacement (- 1RV) , or Front Bumper Lower Fascia Replacement (1RV)

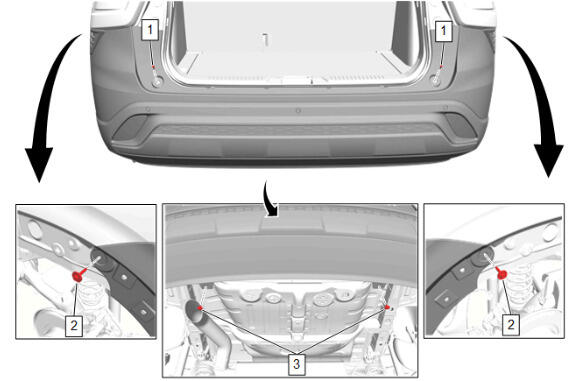

GM5949574Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Adjust Bumper Bolt [2x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation
2 Rear Bumper Fascia Guide Bolt [2x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation
3 Rear Bumper Lower Fascia Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation
GM5949575Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Guide

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet [3x] Yes - - Rear Bumper Fascia Guide Replacement
GM5949577Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Tail Lamp Opening Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Tail Lamp Opening Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Tail Lamp Opening Bracket Replacement
GM5949578Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Impact Bar Nut [6x] - - 22 N.m (16 lb ft) Rear Bumper Impact Bar Replacement
GM5949576Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Upper and Lower Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt [4x] - - 2.5 N.m (22 lb in) Rear Bumper Upper Fascia Replacement
Rear Bumper Lower Fascia Replacement
