Removal Procedure

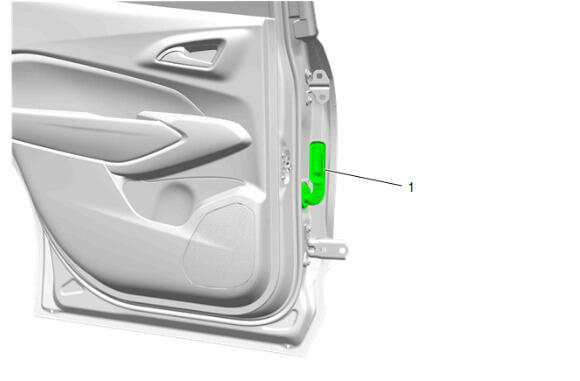

  1. GM5925259Courtesy of GENERAL MOTORS COMPANY

    Disconnect the rear side door wiring harness (1) electrical connector.

  2. GM5220212Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Body Side Bolt (1) - Remove

  3. Mark the location of the rear side door hinges with a grease pencil to aid in alignment during installation.
  4. Support the door before removing the hinge fastener.
  5. Rear Side Door Hinge Bolt - Door Side (2) - Remove [4x]
  6. With the aid of an assistant, remove the rear side door (3).
  7. Transfer components as necessary.
