Removal Procedure

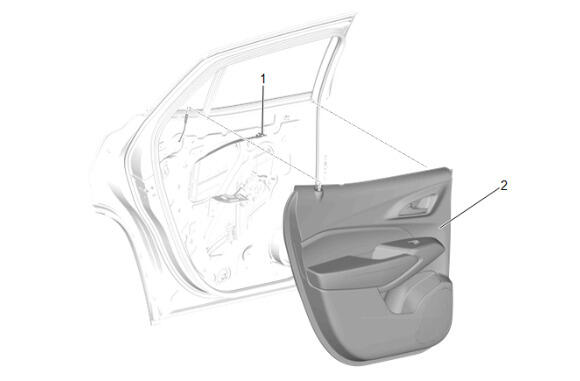

  1. GM5919015Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Trim (2) - Remove - Rear Side Door Trim Removal and Installation

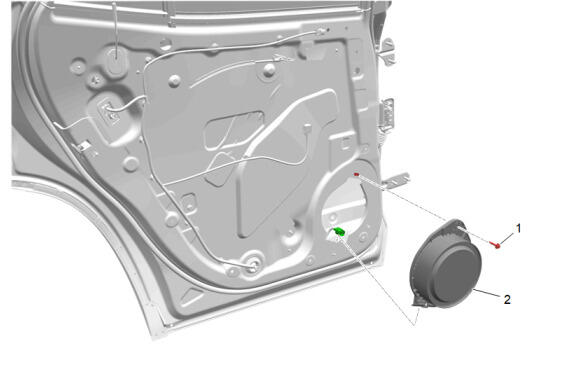

  2. GM5926236Courtesy of GENERAL MOTORS COMPANY

    Radio Rear Side Door Speaker Bolt (1) - Remove

  3. Radio Rear Side Door Speaker (2) - Remove
  4. Disconnect the electrical connector.

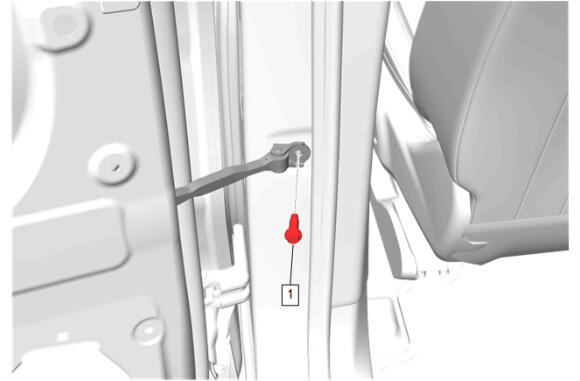

  5. GM5671859Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Body Side Bolt (1) - Remove

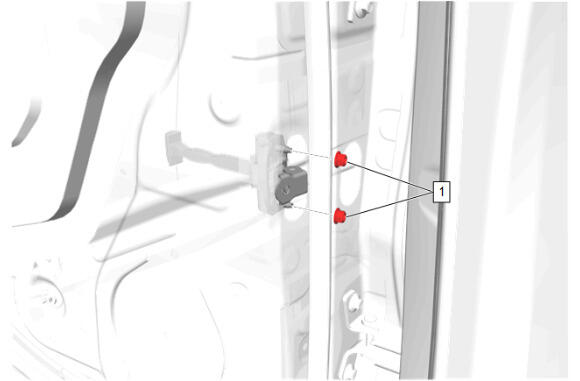

  6. GM5671860Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Door Side Nut (1) - Remove [2x]

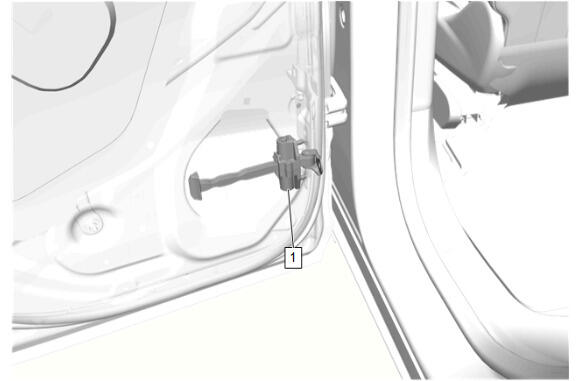

  7. GM5671862Courtesy of GENERAL MOTORS COMPANY

    Remove the rear side door check link (1) through the radio rear side door speaker hole.
