Installation Procedure

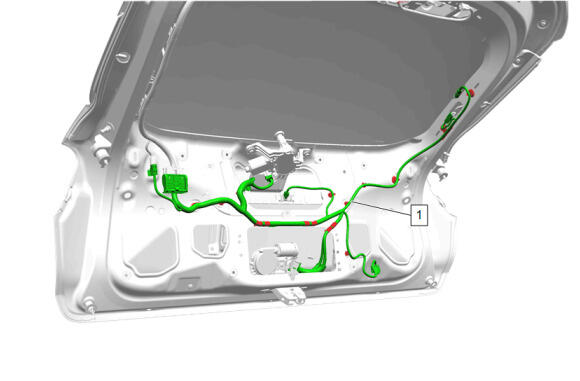

  1. GM5925487Courtesy of GENERAL MOTORS COMPANY

    Liftgate Wiring Harness Extension Harness (1) - Install

  2. Connect all the connectors of the liftgate wiring harness.
  3. GM5920395Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Connect the electrical connector.

  4. Liftgate Lower Trim Finish Panel (1) - Remove
  5. GM5920373Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Side Trim Finish Panel (1) - Both Sides - Install [2x]

  6. GM5920285Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Center Trim Finish Panel (1) - Install

  7. GM5920383Courtesy of GENERAL MOTORS COMPANY

    Install the liftgate trim finish panel pull cup (2).

    8. CAUTION:

    Refer to Fastener Caution .

  8. Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
  9. Close the liftgate.
