Installation Procedure

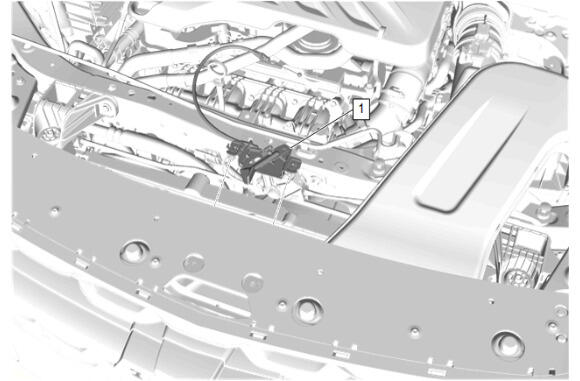

  1. GM5925271Courtesy of GENERAL MOTORS COMPANY

    Hood Secondary Latch Release Cable (1) - Install

  2. GM5925270Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Hood Secondary Latch Release Handle Bolt (1) - Install and tighten [2x] - Fastener Specifications

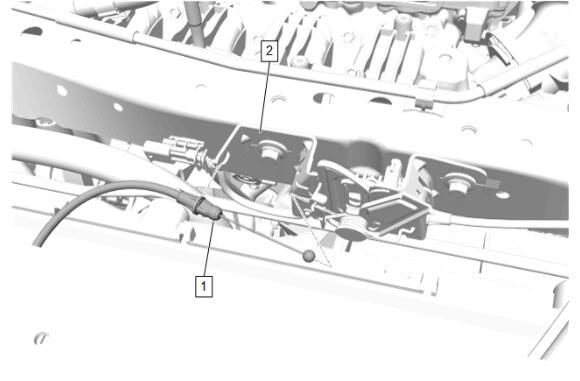

  3. GM5925269Courtesy of GENERAL MOTORS COMPANY

    Hood Secondary Latch Release Cable (1) @ Hood Primary and Secondary Latch (2) - Connect

  4. Close the hood.
