Installation Procedure

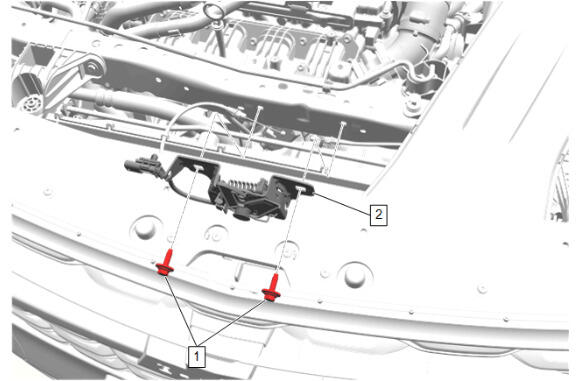

  1. GM5925268Courtesy of GENERAL MOTORS COMPANY

    Hood Primary and Secondary Latch (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Hood Primary Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.

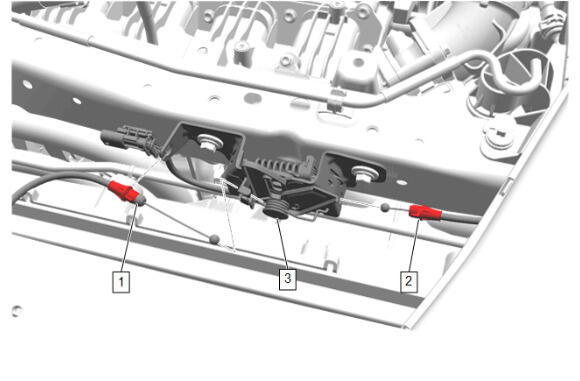

  4. GM5925267Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (2) @ Hood Primary and Secondary Latch (3) - Connect

  5. Hood Secondary Latch Release Cable (1) @ Hood Primary and Secondary Latch (3) - Connect
  6. Close the hood.
