Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

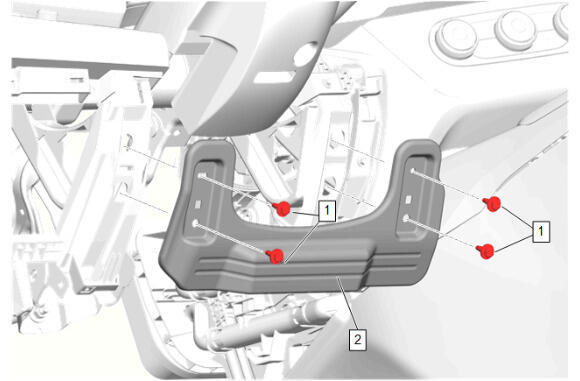

Instrument Panel Knee Bolster Deflector (2) - Install

CAUTION:

Instrument Panel Knee Bolster Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Hood Primary Latch Release Cable Handle (1) @ Instrument Panel Knee Bolster - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Left Side (1) - Install
