Installation Procedure

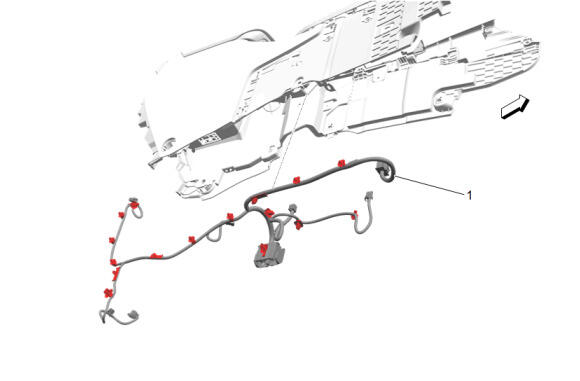

  1. GM5918162Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness (1) - Install

  2. Wiring Harness Clip - Install [16x]

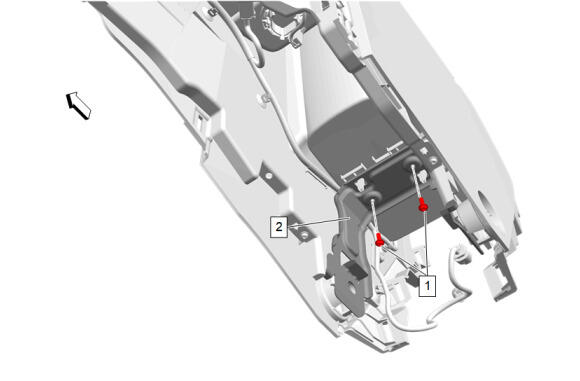

  3. GM5918161Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bracket (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Floor Console Bracket Bolt (1) - Tighten [2x] - Fastener Specifications
  5. GM5924346Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Air Front Duct (1) - Install

  6. GM5924345Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Retainer (1) - Install [2x]

  7. GM5924344Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Retainer (1) - Install [2x]

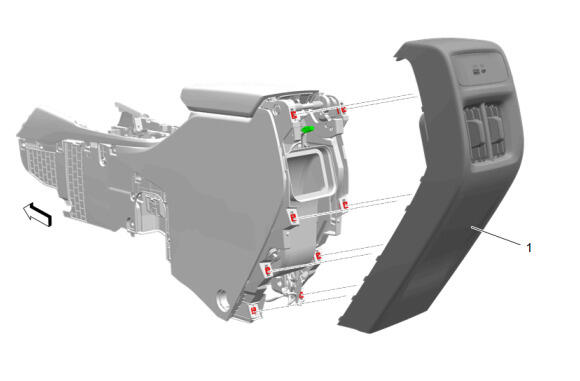

  8. GM5924343Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Install

  9. Connect the electrical connector.
  10. GM5924341Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness Retainer (2) - Install

  11. Connect the electrical connector.
  12. Low Frequency Instrument Panel Antenna (1) - Install
  13. GM5924340Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten - Fastener Specifications

  14. GM5911443Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
