Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

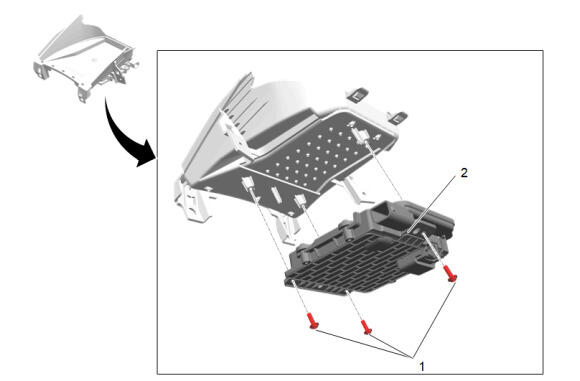

Wireless Charging System Module Assembly (2) - Install
Wireless Charging System Module Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Air Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Stowage Tray (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Storage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment Liner (1) - Install
