Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install
Courtesy of GENERAL MOTORS COMPANY

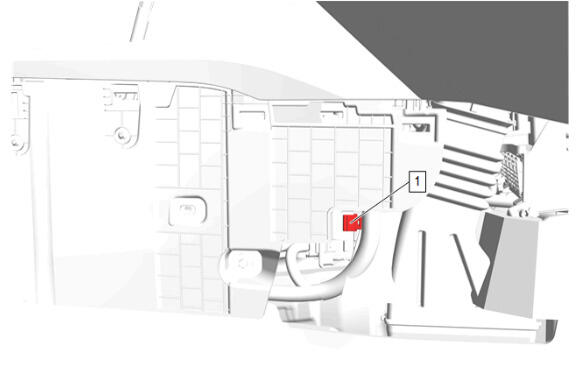

Install the retainer. (1)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

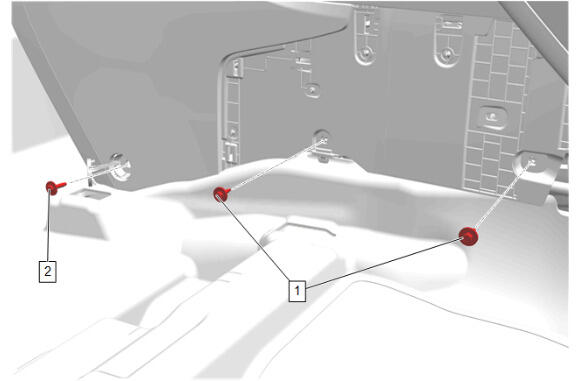

Front Floor Lower Console Bolt (1) - Install and tighten [2x] - Fastener Specifications
Rear Floor Console Bolt (2) - Install and tighten - Fastener Specifications
Close the front floor console bolt access hole cover.
Courtesy of GENERAL MOTORS COMPANY

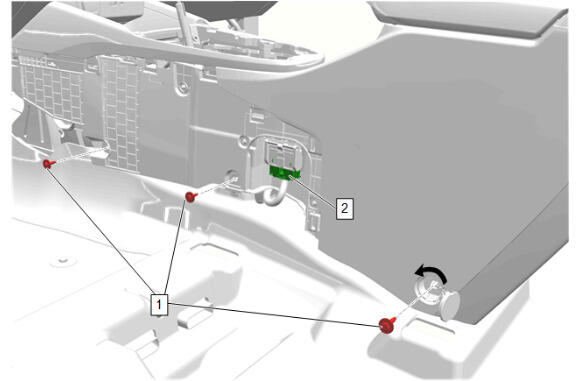

Front Floor Lower Console Bolt (1) - Install and tighten [2x] - Fastener Specifications
Rear Floor Console Bolt (2) - Install and tighten - Fastener Specifications
Connect the electrical connector. (3)
Close the front floor console bolt access hole cover.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (2) - Install
Front Floor Console Extension Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

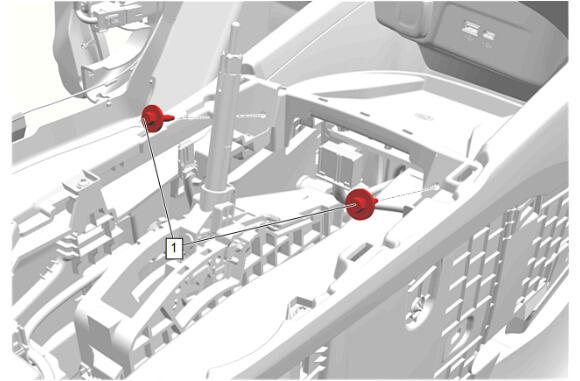

Front Floor Console Storage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Front Floor Console Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Transmission Control Lever Knob (1) @ Transmission Control Lever - Install
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

Insert the rear locating tab (1) into the front floor console.

NOTE:

Pull up on the shift knob after installation, to ensure the knob clip is locked in place.

Seat the retainers (arrows) of the bezel into the front floor console.
Turn the ignition switch to On position, engine Off.
Place transmission control in the Park position.
Un-apply the parking brake.
Turn the ignition switch to the Off position.
Return the seat to its original position.
