Home >> Chevrolet >> 2024 >> Traverse LT, 4WD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> 12 V Battery, Starting And Charging - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Starting and Charging Wiring Schematics >> Charging

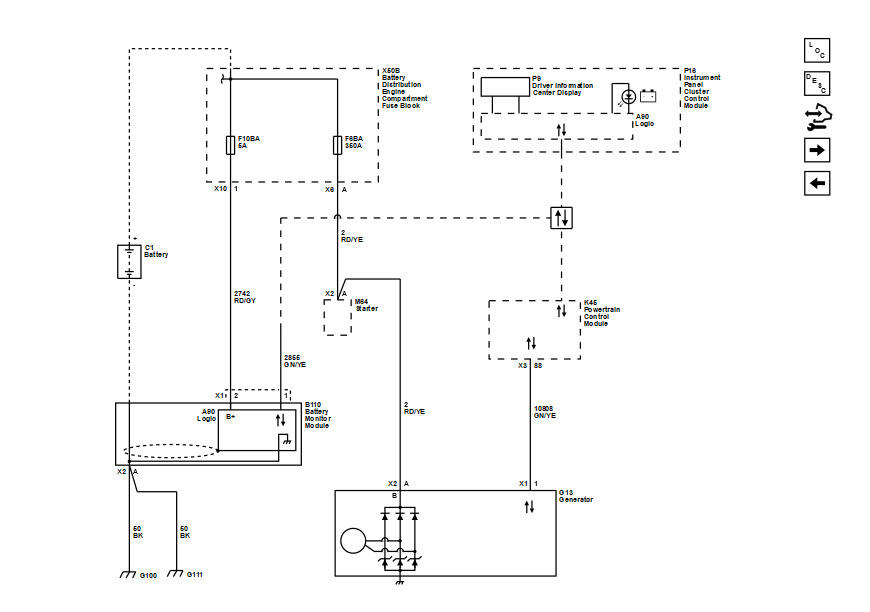

Starting and Charging Wiring Schematics: Charging

GM6356361

Courtesy of GENERAL MOTORS COMPANY
