Removal Procedure

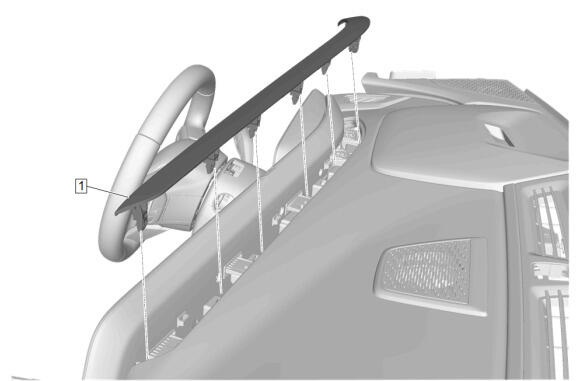

  1. GM6399520Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  2. Instrument Panel Upper Trim Panel Cover (1) - Remove

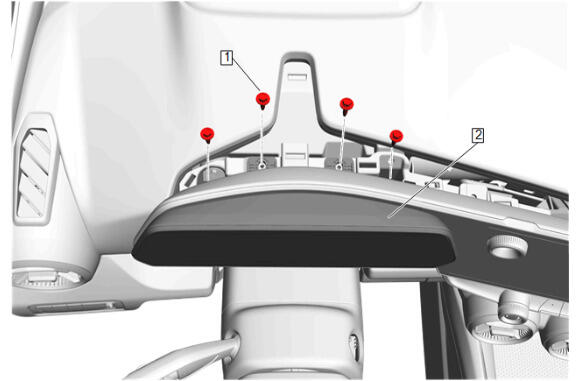

  3. GM6278070Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster Bolt (1) - Remove [4x]

  4. Disconnect the electrical connector.
  5. Instrument Panel Cluster Control Module (2) - Remove
