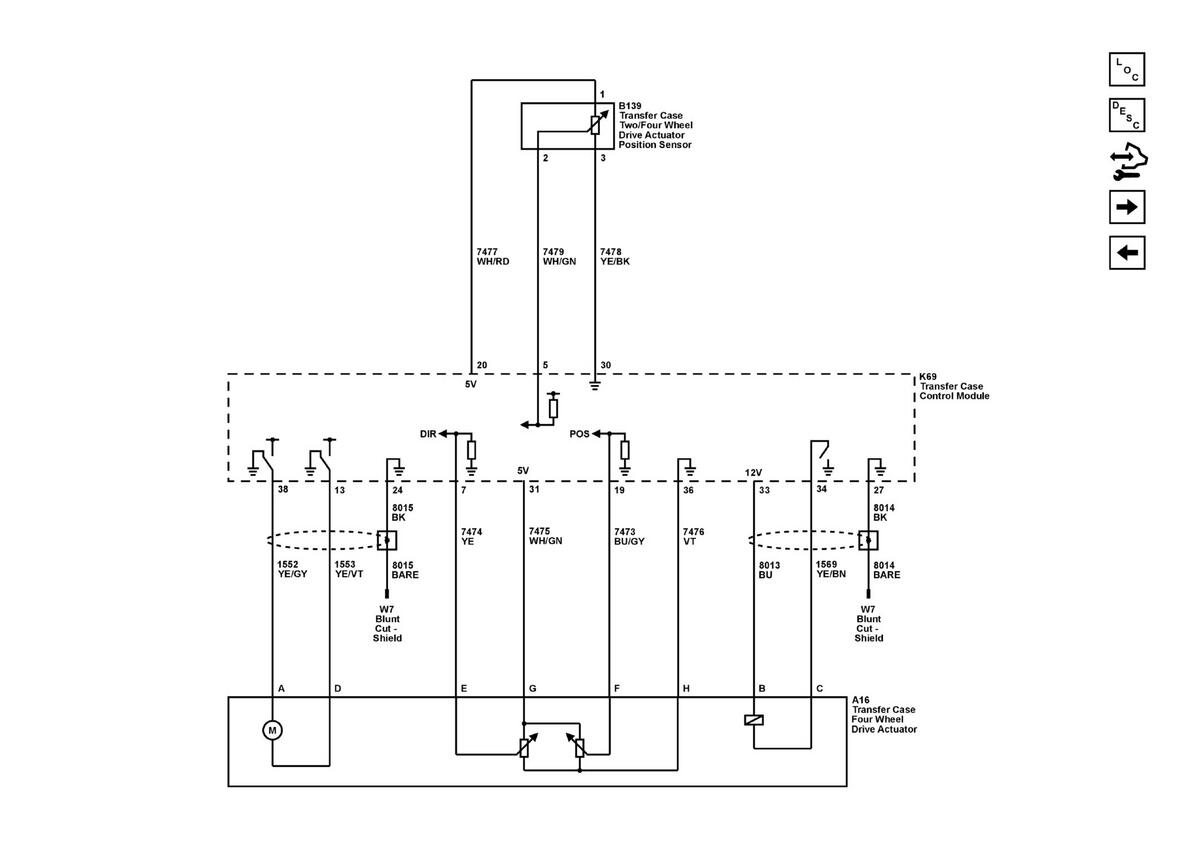

Home >> Chevrolet >> 2024 >> Tahoe Commercial, 4WD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case - Mp 3025 (NQH) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Transfer Case Control Wiring Schematics >> Transfer Case Controls
